|Bipolar stepper motor wires are terminated with bare leads.|
|Sanyo bipolar stepper motor wiring diagram.|

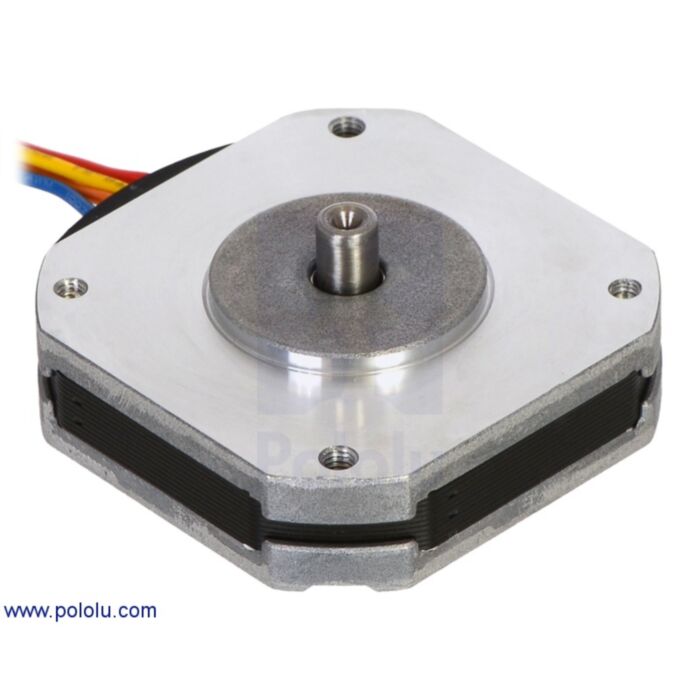

This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 3.5 V, allowing for a holding torque of 850 g-cm (12 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but Pololu recommend using a bipolar stepper motor driver.
Pololu's 5 mm universal mounting hub can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft.
- Size: 42 mm square × 11.6 mm, not including the shaft
- Weight: 70 g (2.5 oz)
- Shaft diameter: 5 mm
- Steps per revolution: 200
- Current rating: 1 A per coil
- Voltage rating: 3.5 V
- Resistance: 3.5 Ω per coil
- Holding torque: 850 g-cm (12 oz-in)
- Inductance: 1.2 mH per coil
- Lead length: 30 cm (12″)
More specifications can be found in the datasheet (385k pdf).
The following diagram shows the stepper motor dimensions in mm. The dimension labeled “L” is 11.6 mm. This stepper motor has a single output shaft with a length of 5 mm from the mounting face and a diameter of 5 mm. This shaft works with Pololu's 5 mm universal mounting hub.
Pololu also carry a stronger, taller version of this stepper motor where “L” in the above diagram is 18.6 mm and all other dimensions are the same.
|Bottom view of the 42×11.6mm Sanyo pancake stepper motor.|
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
|Sanyo stepper motors; from left to right: 14mm single shaft, 42×18.6mm, 50×11mm, 14mm double shaft|
Note: Sanyo Denki calls this product the “SANMOTION F2 STEPPING SYSTEMS TYPE SS2421-5041”.
