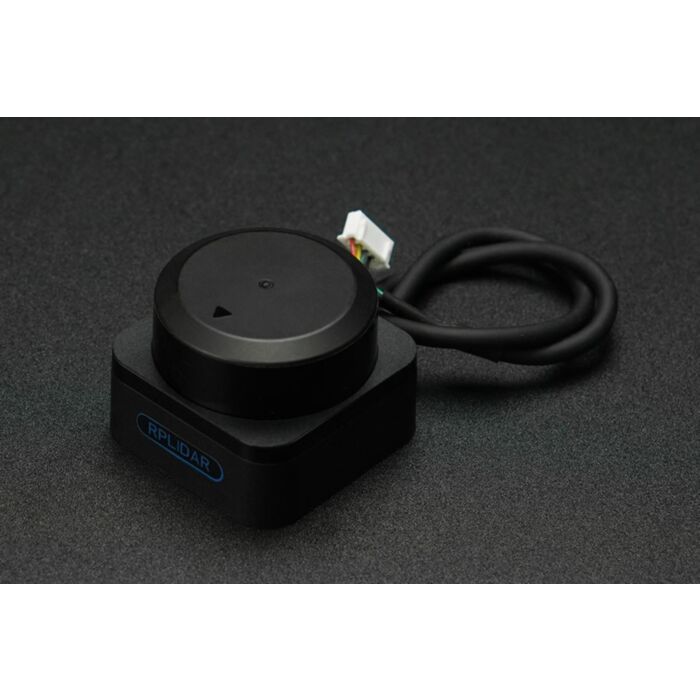

RPLiDAR S3 - 360 Degree Smaller Size TOF Laser Range Scanner (40m)

Skip to the beginning of the images gallery

RPLiDAR S3 - 360 Degree Smaller Size TOF Laser Range Scanner (40m)

SKU: DFR1097 Brand: DFRobot

Upgrade your robot navigation and obstacle avoidance with the latest RPLIDAR S3 360 Degree Mini LiDAR. RPLIDAR S3 TOF Laser Range Scanner offers 40m...

Special Price $951.13 AUD, inc GST

Regular Price $1,138.40 AUD, inc GST

$864.66 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 20 and May 23

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

RPLIDAR S3 with Smaller size and Better performance, SLAMTEC Ecosystem, Smooth Upgrading

SLAMTEC self-developed SL-TOF (SLAMTEC Direct Time-of-Flight)

SLAMTEC self-developed L-T0F distance measurement technology improves environmental light immunity and measurement accuracy.

A stable and fixed 40-meter measurement radius

Even at 70% reflectance, RPLiDAR S3 can ensure an accurate distance measurement of about 40m, meeting the requirements for medium to long-range scanning.

Low reflectivity at 15 meters measurement radius

RPLiDAR S3 performs equally well in measuring distances when facing low-reflectivity objects such as black color doors and anti-reflective coating objects. It can measure up to a distance of 15 meters with a 10% reflectivity.

32,000 times/second High-Speed Sampling Capabilities

RPLiDAR S3 demonstrates exceptional capabilities in real-time perception, precise positioning, and target detection. Its high-speed sampling frequency allows it to capture a greater amount of point cloud data, enabling faster and more accurate mapping.

80,000Lux anti-interference ability of ambient light

Thanks to hardware optimization, the RPlidar S3 effectively reduced light interference and provides accurate laser ranging data, regardless of challenging conditions such as indoor strong lighting or direct sunlight outdoors.

Smaller size, better performance

RPlidar S3 is compact and sleek, with a total height of only 4cm, making it the smallest LiDAR product by SLAMTEC. It is cost-effective while overcoming the limitations of space and catering to various application scenarios.

Compatible with the SLAMTEC ecosystem

RPlidar S3 is highly compatible with SLAMTEC’s software, firmware, and hardware interfaces. It also provides a seamless transition in terms of size with SLAMTEC’s existing products, ensuring smooth integration.

Support Various Development Platforms

SLAMTEC provides users with SDK development kits that can run on x86 Windows, x86 Linux, arm Linux, and other platforms to match various development applications.

CLASS 1 Laser Safety Standard

RPLIDAR S3 adopts the low power infrared laser light as its light source, and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which can ensure its safety to human eyes.

Features

Smaller size, better performance

SLAMTEC Ecosystem, Smooth Upgrading

32000 times/second sampling speed

40m measuring radius

80000lux strong light anti-interference

IP65 proof level

IEC-60825 Class 1 laser safety standard

SDK development package supporting X86 windows, x86 Linux, arm Linux and other platforms.

Applications

Ideal for both outdoor and indoor environments with resistance to lighting (80k lux)

Robot navigation and obstacle avoidance

Obstacle detecting and avoiding of AGV

Parking lot monitoring

Environment perception and autonomous movement of low-speed unmanned vehicles

Multi-point touching and man-machine interaction

UAV mapping and obstacle avoidance

ROS trolley/education trolley for map building and obstacle avoidance

Environment scanning and 3D rebuilding

Specification

Measurement Range: 0.05 - 40m (70% Reflectivity) 0.05 - 15m (10% Reflectivity) 0.05 - 5m (2% Reflectivity)

Measurement Blind Zone: 0.05m

Sampling Rate: 32K times/second

Scan Frequency: Typical: 10Hz (10Hz-20Hz)

Angle Resolution: Typical: 0.1125* (0.1125"-0.225")

Communication Interface: TTL, UART

Communication Rate: 1M

Range Resolution: 10mm

Measurement Accuracy: ±30mm

Documents

Parts List

RPLIDAR S3 x1

USB Adapter x1

Mirco-USB Cable x1

Power Cable x1
