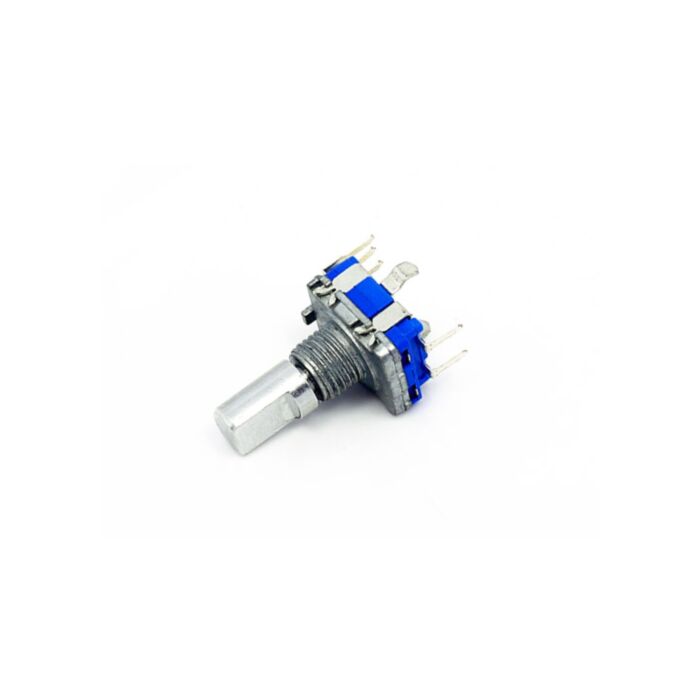

Rotary Encoder with Switch (Seeed Studio)

SKU: SS311130001

$6.25 AUD, inc GST
$5.68 AUD, exc GST

More Views

Rotary Encoder with Switch (Seeed Studio)
6.25 AUD

SKU: SS311130001

$6.25 AUD, inc GST
$5.68 AUD, exc GST
0 units ship today
Contact us if you need this product urgently
There are total 5 pins on the encoders, 3 of them on one side are for rotary encoding which need a simple circuit to supply DC 5V. The remaining 2 pin go short whenever pressed. Please refer to example scheme for more clear understanding.


In the middle of 3 pins' side is COM port connect to GND .

And other pins (A and B same side of GND) separate pull to +5v via 10k ohm resisters .

Connect the A and B directly to Arduino IO pins.

Arduino usage: http://www.arduino.cc/playground/Main/RotaryEncoders

http://www.seeedstudio.com/depot/datasheet/RotEncoderSpec002.jpg
