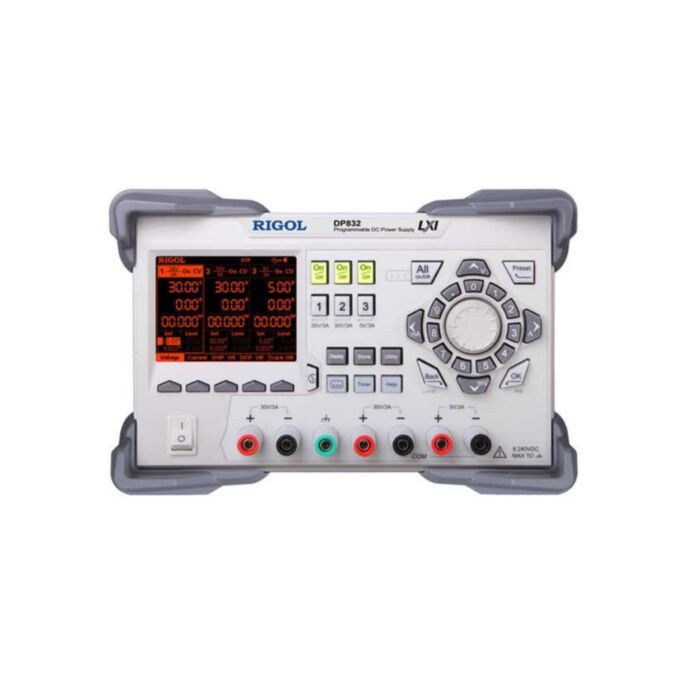

Rigol DP-832 Triple Output DC Power Supply

SKU: DP832 Brand: Rigol Guides (3)

Retired Product

Replaced by: DP932E
This product has been replaced by: DP932E
This product is no longer available. This page is only for reference.

The DP832 represents the next generation of the linear triple output DC power supplies from Rigol.

This device can also be controlled by USB - take a look at our guide to find out more.

3 Channels, Channel 1 is isolated from Channels 2 & 3

Voltage/Current Per Channel

CH1: 0 to 30V/0 to 3A

CH2: 0 to 30V/0 to 3A

CH3: 0 to 5V/0 to 3A

Over Voltage Protection / Over Current Protection (OVP/OCP)

CH1: 10mV~33V/1mA~3.3A

CH2: 10mV~33V/1mA~3.3A

CH3: 10mV~5.5V/1mA~3.3A



Load Regulation Rate ±(Output Percentage Offset)

Voltage <0.01% 2mV

Current <0.01% 250uA

Linear Regulation Rate ±(Output Percentage Offset)

Voltage <0.01% 2mV

Current <0.01% 250uA

Ripples and Noise (20Hz to 20MHz)

Normal Mode Voltage <350µVrms/2mVpp

Normal Mode Current Common Mode Current <1.5µArms

Channel Isolation: CH1 || CH2,CH3

Standard OVP/OCP/OTP protection functions

Standard Timing function

In-Built V,A,W measurements and waveform display

Support Output Delay, Analysis, Monitor, Preset functions

Independent control for each channel

Display 3.5 Inch TFT

Connectivity USB Host & Device, LAN, RS232,Digital IO,Support USB-GPIB (Opt.)

Rigol DP-800 series specifications

Rigol Options for the DP800 Series

Rigol has a series of optional software upgrades that unlock the full feature potential of this unit. They are listed as separate purchasable upgrades below.

Included Items

  • DP-832
  • 3 Pin Power Cord (Australian Standard)
  • USB type B Cable
  • A Fure 50T-032H 250V 3.15A
  • User quick guide (Hard Cope)
  • Digital I/O Interface Connecting Terminal
