RF Explorer Upconverter

SKU: SS114991131 Brand: Seeed Studio

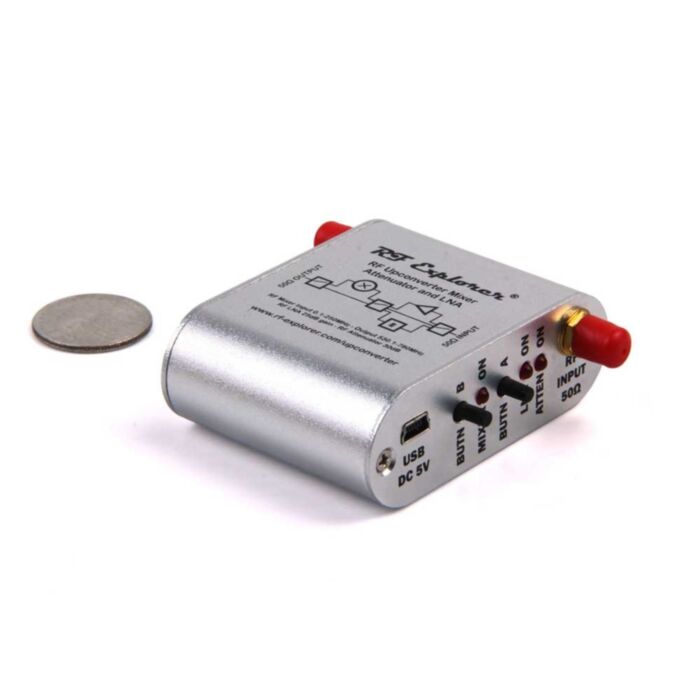

RF Explorer Upconverter is a high-performance RF frequency mixer to enable input frequency ranges from 100KHz to 250MHz in RF Explorer Spectrum Analyzer and other devices such as SDR and wideband radios.

$214.95 AUD, inc GST

$195.41 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 20 and Mar 24

Quantity Discounts:

5-10 $187.59 (exc GST)
10+ $181.73 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

RF Explorer Upconverter is a multi-purpose device:

* Includes an Upconverter Mixer to enable frequencies 100Khz - 250MHz in your

RF Explorer Spectrum Analyzer or other devices such as RTL-SDR and converts into 530.1-780MHz

* Internal selectable Low Noise Amplifier of 25dB gain nominal, to increase the sensitivity of receivers, Spectrum Analyzers, Oscilloscopes and Near Field antennas in frequencies 100KHz - 4GHz

* Internal selectable Attenuator 30dB nominal to enable large-signal measurement

For more details about user guide and coding, please visit the Upconverter site here.
If you'd like to buy or change the RF Explorer Battery, please click here.

Features

Internal LNA amplifier and selectable attenuator
In Mixer mode convert frequencies from input 100KHz-250MHz up to 530.1-780MHz output
In Bypass mode, it can work in frequencies from 50KHz to 4GHz including LNA and Attenuator
Compact size and lightweight
Solid aluminum metal case
The mini USB port is used for powering the unit DC 5V, easy connection to a PC, wall wart or even portable power bank battery.
Easy connection to RF Explorer with included RF adapter SNA Male-Male
Ideal device to amplify weak signals using RF Explorer Near Field antennas
CE / FCC / RoHS compliant

Technical details

Dimensions 120mm x77mm x26mm
Weight G.W 95g
Battery Exclude
Input Frequency band Mixer Mode 0.1 – 250MHz
Input Frequency band: Bypass Mode 0 – 4GHz
LNA Frequency band 0 – 4GHz
Attenuator Frequency band 0 – 4GHz
Internal selectable LNA 25dB gain
Internal selectable Attenuator 30dB
Connectors Standard SMA 50 ohms RF connectors
Absolute Max input power Bypass and Attenuator mode +30dBm
Absolute Max input power LNA mode +5dBm
Mixer stability and accuracy (typical) +-10ppm
