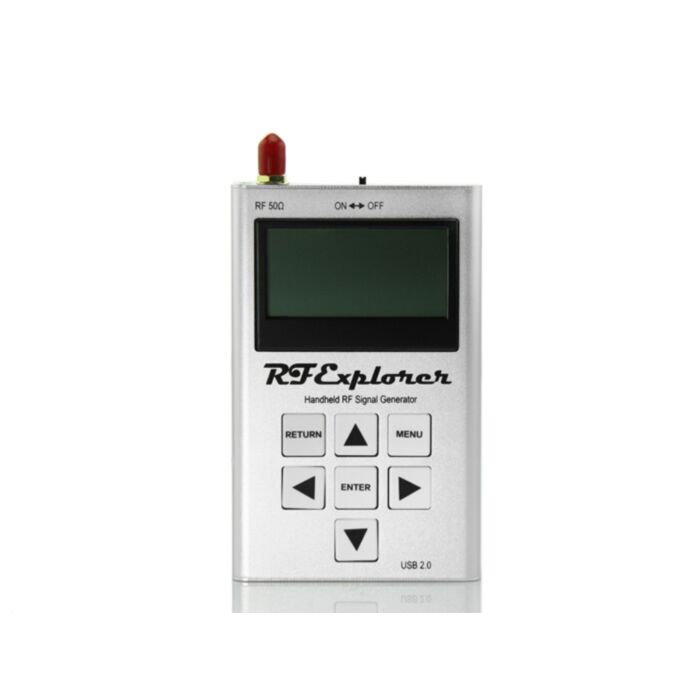

RF Explorer Signal Generator (RFE6GEN) (Seeed Studio)
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
- 3-5 $309.77 (exc GST)
- 5+ $300.09 (exc GST)
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
The RF Explorer Signal Generator (RFEGen) is a powerful, wideband fully programmable RF signal generator. It is the perfect companion for Spectrum Analyzer RF Explorer product line.
As a standalone unit, RFEGen can generate CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the RF Explorer for Windows software tool.
Further more, the unit can work as a powerful Tracking Generator when used with RF Explorer Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization of filters, amplifiers and any 2-port RF device.
Features
-
Pocket size and light weight
-
Solid aluminum metal case
-
Lifetime free firmware upgrades available, open to community requested features
-
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
-
RF Explorer for Windows PC client Open Source
-
Can be extended with internal Expansion Modules for additional future band support and functionality
-
Wide band support
-
Frequency range supported: 24 to 6000 MHz
-
Frequency step/resolution: 1KHz
Frequency stability: 0.5ppm
-
Temperature compensated (0-45C)
-
Backlight for great indoor visibility
-
Standard SMA 50 ohms connector
-
Programmable Amplitude with included internal programmable attenuator:
-
-40dBm to -30dBm in 3dB steps
-
-10dBm to 0dBm in 3dB steps
Amplitude accuracy: +-0.5dB (normalized) or +-3dB (absolute)
-
Switch measurement point speed < 10ms
-
Graphics LCD 128x64 pixels, great visibility outdoors
-
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
-
Functional modes:
-
CW signal generator at any frequency in the range
-
Tracking generator functionality working together with RF Explorer when connected to the same PC
Sweep generator between any to frequencies in the range, with selectable step size and speed
-
Expansion:
-
Expansion port for future enhancements (higher RF power modes, additional frequency bands)
-
Size: 113x70x25 mm
For more information, please visit here.
Note: Hardware is final and fully calibrated, but RF Explorer for Windows Software and embedded Firmware are delivered BETA and under development. Please go to this reference page as well as our facebook page to get progress update and download new versions as released.
As for the software for RF Explorer series, please click the following logo for more information:
