Reinforced Interface Cable - SMA Male to TNC Male (10m)

SKU: CAB-21740 Brand: Sparkfun
This is a 10 meter (33 ft) long Male TNC to Male SMA cable with injection molded stress-relief boots...
$57.20 AUD, inc GST
$52.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 6-12 $50.44 (exc GST)
  • 12+ $49.40 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

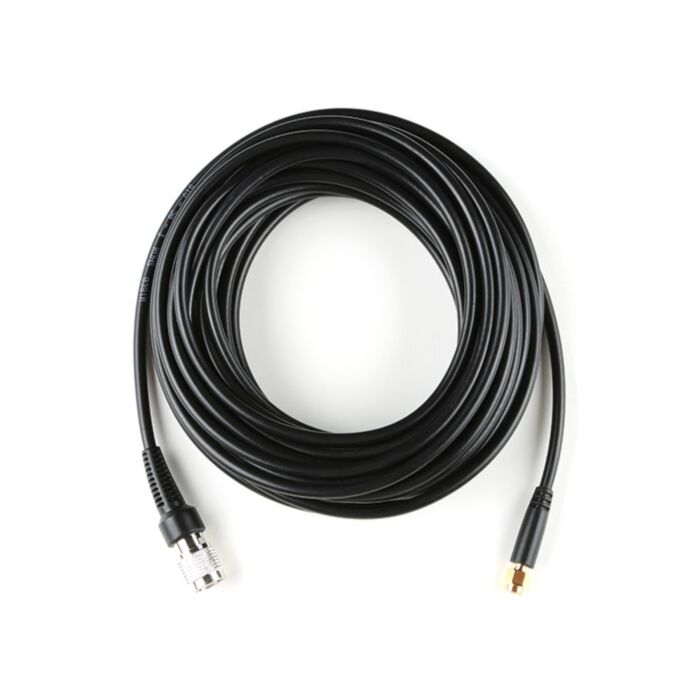

This is a 10 meter (33 ft) long Male TNC to Male SMA cable with injection molded stress-relief boots. This is an excellent cable for connecting one of our RTK development boards to a high quality 'UFO' style GNSS antenna. It's long enough to connect to an antenna on the roof to one of our GNSS receivers. The TNC connector allows the cable to be connected directly to an antenna reducing the number of adapters and thus keep signal degradation to a minimum.

The SYV-50-3 cable has a loss of 52dB per 100m (320ft) or 5.2dB of loss per length of 10m. Sparkfun specifically chose SYV-50-3 cable over RG58 (46 db per 100m) for its good balance of low loss and high flexibility.

Each cable has a nominal impedance of 50O. If you are looking for a good antenna to pair this cable with, Sparkfun recommend our GNSS Multi-Band L1/L2/L5 Surveying Antenna.

Features

  • Cable type: SYV-50-3
  • Length: 10m / 33ft
  • TNC Connector: Male
  • SMA Connector: Male

Frequency (MHz) / Loss (dB/100m)

  • 200 / 23.74
  • 400 / 33.93
  • 900 / 51.80
  • 1800 / 69.40
  • 1900 / 77.06
  • 2000 / 79.21
  • 2400 / 87.40
  • 3000 / 98.68

Source: Lianstar
