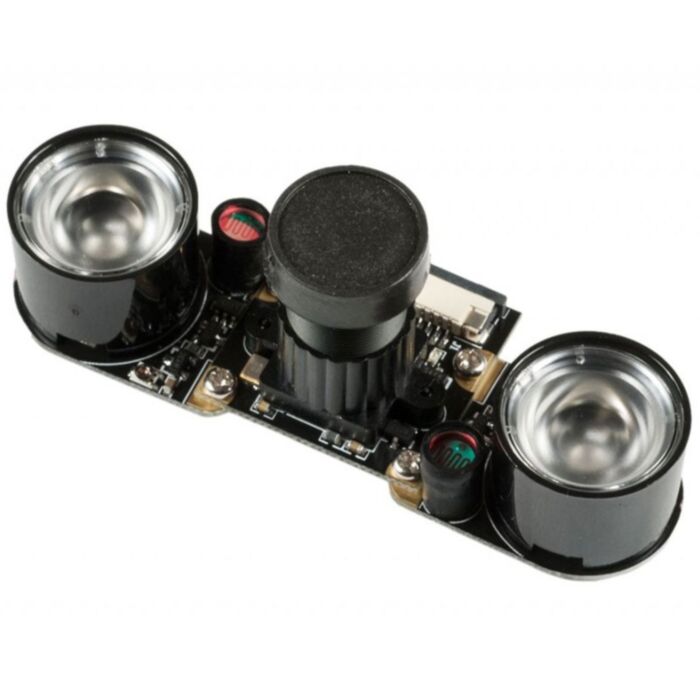

Raspberry Pi Camera Board - Night Vision & Fisheye 160° Lens (5MP)

SKU: CE05784 Brand: Waveshare

What does the fox say? You'll probably never know, but at least we can see what that pesky fox is up to with this Raspberry Pi Night Vision Camera!

$47.90 AUD, inc GST

$43.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $41.80 (exc GST)
25+ $40.50 (exc GST)

What does the fox say? You'll probably never know, but at least we can see what that pesky fox is up to with this Raspberry Pi Night Vision Camera!

ModMyPi's Raspberry Pi Night Vision Camera plugs directly into the CSI connector on the Raspberry Pi, and features two high-intensity Infrared LED spotlights for night time recording! The IR LED's are powered directly from the CSI port, and are capable of lighting an area at a distance of up to 8m! In testing, the best images were captured at a distance of 3m to 5m. The camera also features an adjustable focal length lens and 160 degree viewing angle.

This Raspberry Pi night vision camera uses the same OV5647 as the standard Raspberry Pi camera, and is, therefore, able to deliver a crystal clear 5MP resolution image or 1080p HD video recording at 30fps!

Features

Raspberry Pi Night Vision Camera. Compatible with all revisions of the Raspberry Pi
5 Megapixel OV5647 Camera
2 x 3W high-power 850 infrared LEDs:
Onboard photoresistor to detect ambient light
Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED

Camera specifications

CCD size : 1/4inch
Aperture (F) : 1.8
Focal Length: adjustable
Diagonal : 160 degree (most others at typically 72 degrees)

diagonal angle: 160 degree
Horizontal angle: 120 degree

Sensor Resolution : 1080p
Dimension : 25mm x 24mm
4 screw holes
Used for both attachment and 3.3V power supply
Supports up to 2 infrared LEDs

NOTE: 4x M2 Light mounting screws are NOT included
