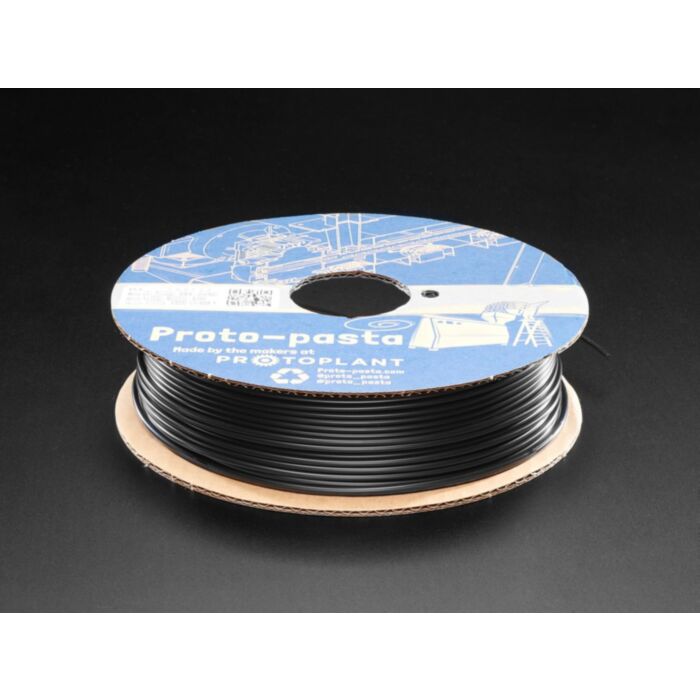

Proto-pasta - 2.85mm Diameter - Conductive Graphite Filament - 500g

SKU: ADA3752 Brand: Adafruit

Retired Product

Replaced by: CE04725

This product has been replaced by: CE04725
This product is no longer available. This page is only for reference.

Pici up this filament today! It'd be Fusilli not to buy this filament! Adafruit can't tagliatelle you enough about this filament. Are these puns Spirali-ng out of control?

Sorry! Adafruit had to get that out of Adafruit's system. Proto-pasta's fun packaging makes Adafruit hungry for Italian food. If you're hankering for unusual and unique material filaments, Adafruit have got a new spool of noodles for you!

This Proto-pasta 2.85mm diameter 500 grams of filament in Conductive Graphite opens up a new world of 3D-printed fun but with electronics!

Proto-pasta Conductive PLA is an FFF/FDM filament, so now you can print circuit assembles with touch or light sensors or LEDs to your gamut of 3D printed creations!

And, of course, even though it has the word "Pasta" in the name, it's not for eating.

Check out the Proto-pasta site here for more info and frequently asked questions about this filament!

This filament performs best extruded between 195°C and 225°C.

Features:

Solid, weighted feel with 1.5x the density of standard PLA
Attracts magnets (neodymium type recommended for strongest attraction)
- Induction at magnetic saturation about 0.15 Tesla
- Relative (to air) permeability - between 5 and 8 independent of frequency up to 1 MHz
- Permeability - between 62E-7 and 100E-7 H/m independent of frequency up to 1 MHz
More thermally conductive
Prints like PLA with less nozzle wear 'n tear

If you're looking for more information on the different types of 3D printing material, here's a great tutorial on Adafruit's Learn System!

Technical Details

Resistivity:

Volume resistivity of molded resin (not 3D Printed): 15 ohm-cm
Volume resistivity of 3D printed parts along layers (x/y): 30 ohm-cm
Volume resistivity of 3D printed parts against layers (z): 115 ohm-cm
Resistance of a 10cm length of 2.85mm filament: 600ohm

Bed Temp (if available, is not required): 50°C

Hot End Temp: 215 – 230°C (Proto-pasta runs it on the hotter side to encourage layer adhesion)

Performance:

Strength: Fair strength. More flexible than PLA, but less layer adhesion
Stiffness: Low, semi-flexible
Heat Resistance: Similar to PLA, use below 50ºC
Layer Adhesion: Fair layer adhesion. Not as good as normal PLA
Flexibility: Filament is quite flexible but will break if bent repeatedly (particularly 2.85mm). Printed parts are rigid if more than a mm or two thick. Thin sections are somewhat flexible but fail along layer lines if flexed more than a few times.
Failure Mode: If flexed to breakage, failure will be along layer lines.
Warping: Very low warping
Dual-Head compatibility: Compatible with (sticks to) PLA in dual material prints

Proto-pasta Conductive PLA is a compound of Natureworks 4043D PLA, a dispersant and conductive carbon black. In filament form, it is very flexible, and is compatible with any PLA printing printer.
