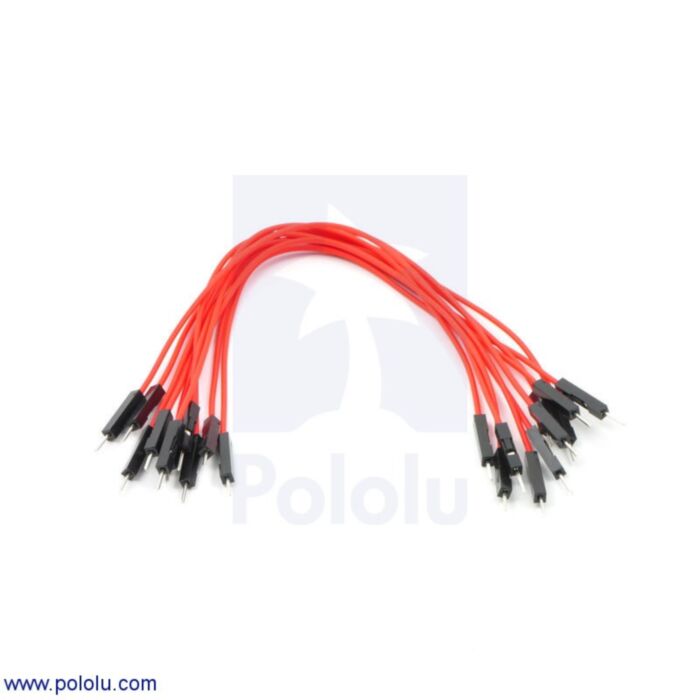

Premium Jumper Wire 10-Pack M-M 6" Red

SKU: POLOLU-1732 Brand: Pololu

These premium jumper wires are stranded 26 awg wires with male terminations on both ends, for use with 0.1" (2.54 mm) male headers. These 6" (15 cm) wires have red insulation and ship in packs of 10.

$6.15 AUD, inc GST

$5.59 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

10-25 $5.36 (exc GST)
25+ $5.20 (exc GST)

These premium 26 AWG stranded jumper wires are equivalent to Pololu's wires with pre-crimped terminals with 1×1 crimp connector housings already attached, and they are great for making quick and easy prototyping connections. They are available in five lengths—1" (2.5 cm), 2" (5 cm), 3" (7.5 cm), 6" (15 cm) and 12" (30 cm)—and up to ten colors:

black
brown
red
orange
yellow
green
blue
purple
gray
white

These are the same colors as those used on resistor color codes and rainbow ribbon cable. The available color options and pack sizes depend on the wire length:

length	single-color pack quantity	multi-color pack quantity
1" (2.5 cm)	10 (six colors available)	60 (10 each of six colors)
2" (5 cm)	10 (six colors available)	60 (10 each of six colors)
3" (7.5 cm)	10 (six colors available)	50 (5 each of ten colors)
6" (15 cm)	10 (ten colors available)	50 (5 each of ten colors)
12" (30 cm)	10 (ten colors available)	50 (5 each of ten colors)

Note that the single-color packs of the 1", 2", and 3" wires are only available in six colors (black, red, yellow, green, blue, and white), while the single-color packs for the 6" and 12" wires are available in all ten colors. The multi-color packs of the 1" and 2" wires have ten each of six colors (black, red, yellow, green, blue, and white); the multi-color packs for all of the other wire lengths, including 3", have five each of all ten colors.

These wires can be purchased with male terminations on both ends, female terminations on both ends, or one male and one female termination. These terminations are designed for use with 0.1" (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female terminations are shown below:

Premium jumper wire male end.

Premium jumper wire female end.

You can use the following selection boxes to get to the specific wires you are looking for:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

Pololu also have versions of these wires without housings on the crimp connectors that can be used with Pololu's selection of 0.1" crimp connector housings to make custom cables or longer premium jumper wires. For more information, see Pololu's wires with pre-crimped terminals, or use the following selection boxes:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

The following video talks about some of Pololu's various wire and cable options:

People often buy this product together with:

Premium Jumper Wire 10-Pack M-F 6" Black

Premium Jumper Wire 10-Pack M-M 6" Black

Premium Jumper Wire 10-Pack M-M 6" Yellow

Dimensions

Length:	6 in

General specifications

Gender:	Male-Male
Color:	red
