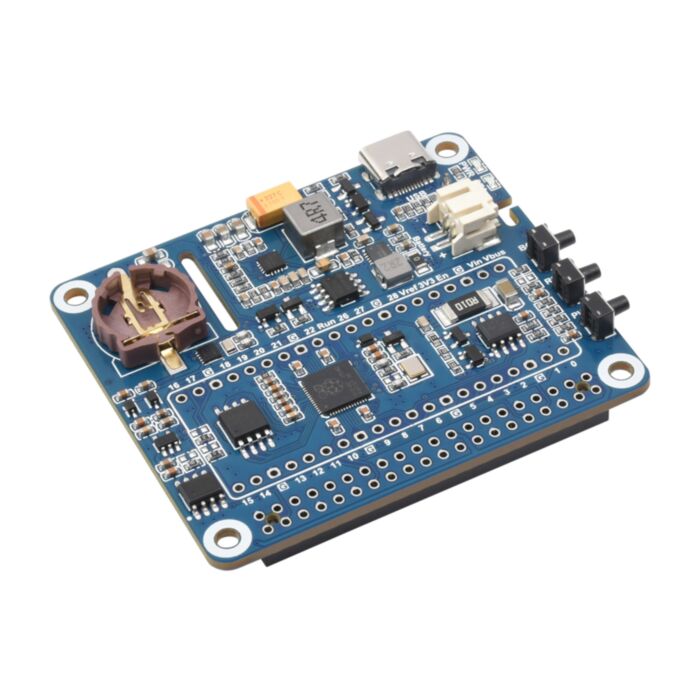

Power Management HAT for Raspberry Pi
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Quantity Discounts:
- 10+ $32.23 (exc GST)
- 25+ $31.56 (exc GST)
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
Details
Designed For Applications Required Power Management
Provides a powerful power management solution, such as timing power on/off,
measuring working voltage, etc. Fast load transient response for fast switching
among multiple power supplies
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- Onboard PCF8523 RTC chip, provides precise RTC information
- Onboard MP28167-A buck-boost DC chip for fast load transient response
- Onboard user-defined button, can be used for Raspberry Pi start up, safely shutdown, or other customized function
- Protection circuits such as: power supply anti-reverse, counter current proof, etc. ensures stable and safe operating
- Voltage/current monitoring circuit, monitors the Raspberry Pi operating voltage and current in real time
- Comes with complete resources and manual
| Main controller | RP2040 |
|---|---|
| Communication interface | UART + GPIO |
| Communication baud rate | 115200bps by default (configurable) |
| Power supply interface | USB port or PH2.0 connector |
| USB power input voltage | 5V |
| PH2.0 power input voltage | 3.3 ~ 4.2V (3.7V lithium battery) |
| Embedded circuits | battery anti-reverse, counter current proof, voltage/current monitoring |
| Dimensions | 56.5 x 65.0mm |
| Mounting hole diameter | 3.0mm |
Customized For Raspberry Pi Series Board
Using RP2040 Microcontroller Chip Designed By Raspberry Pi, Powerful & Easy To Use
Compatible with Raspberry Pi Pico standard pinout, for connecting with Pico HAT
Onboard PCF85063 RTC chip with button cell holder
same time, Uninterruptible Power Supply
Onboard MP28167-A buck-boost DC chip, supports fast load transient response
Fast switching among multiple power supplies
* for reference only, please refer to the part list for detailed package content.
Can be used as the power button for Raspberry Pi start up, software shutdown and forced shutdown
Onbaord power supply anti-reverse, counter current proof, Voltage/current monitoring circuit, to ensure stable and safe operating
- USB type-C
for downloading programs, USB communication and power supply - MP28167-A
buck-boost DC chip for fast load transient response - CR1220 button cell holder
provides uninterruptible power supply for RTC clock chip - PCF85063
RTC chip, provides precise RTC information - W25Q32JVSSIQ
4MB NOR-Flash - RP2040
dual-core processor, up to 133MHz operating frequency - INA219
zero-drift, bi-directional current/power monitor - PWR button
user button, usually used as the power button
- Reset button
RP2040 reset button - BOOT button
press with the Reset button at the same time, release the Reset button then the BOOT button to enter download mode - PH2.0 battery interface
for 3.7~4.2V regulated power supply or lithium battery - Fan header
- Status indicator
- Power supply indicator
- ETA6096
high efficiency lithium battery recharge chip - Raspberry Pi GPIO header
- RP2040 pinout interface
compatible with Raspberry Pi Pico standard pinout, for connecting with Pico HAT
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Weight: 0.066 kg
Quick Overview
- Power Management HAT (B) x1
- 2x20PIN female header x1
- USB cable type A male port to Type C male port x1
- Screws pack x1
