PN532 NFC/RFID controller breakout board - v1.6

SKU: ADA364

$58.44 AUD, inc GST
$53.13 AUD, exc GST

More Views

PN532 NFC/RFID controller breakout board - v1.6
58.44 AUD

SKU: ADA364

$58.44 AUD, inc GST
$53.13 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 138 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 21st of Dec with Express Post within Australia.
Shipping Offer

The PN532 is the most popular NFC chip, and is what is embedded in pretty much every phone or device that does NFC. It can pretty much do it all, such as read and write to tags and cards, communicate with phones (say for payment processing), and 'act' like a NFC tag. If you want to do any sort of embedded NFC work, this is the chip you'll want to use!

NFC (Near Field Communications) is a way for two devices very close to each other to communicate. Sort of like a very short range bluetooth that doesn't require authentication. It is an extension of RFID, so anything you can do with RFID you can do with NFC. You can do more stuff with NFC as well, such as communicate bi-directionally with cell phones

Because it can read and write tags, you can always just use this for RFID-tag projects. We carry a few different tags that work great with this chip. It can also work with any other NFC/RFID Type 1 thru 4 tag.

The PN532 is also very flexible, you can use 3.3V TTL UART at any baud rate, I2C or SPI to communicate with it. This chip is also strongly supported by libnfc, simply plug in an FTDI cable and use the FTDI serial port device to communicate - this lets you do NFC dev using any Linux/Mac/Windows computer! They also include onboard power LED, 3.3V regulator and an FTDI header so you can plug in an FTDI friend or FTDI cable and use with libnfc.

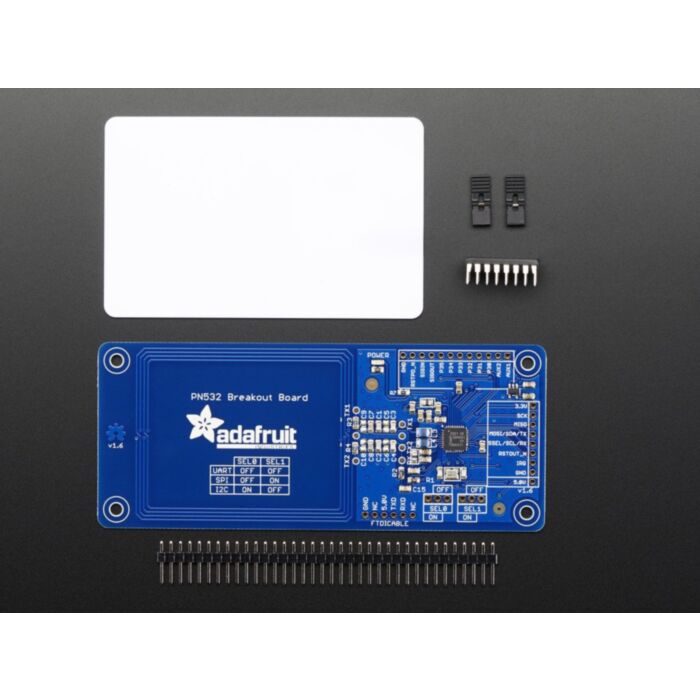

Comes with: the PN532 breakout board including a tuned 13.56MHz stripline antenna, 0.1" header, 2 jumpers/shunts and a 4050 level shifter chip. They also toss in a  13.56MHz 1K card! (You can get more tags from Adafruit here)

Technical Details

Datasheets, downloads, fritzing libraries, documents, and EagleCAD PCB GitHub files available in the product tutorial

  • 2" (51mm) x 4.7" (117.7mm) and 0.425" (1.1mm) thick.
  • This board/chip uses I2C 7-bit address 0x48

Revision History:

  • As of Oct 31, 2014 Adafruit updated the PCB design to allow the PN532 to enter low-power mode. The code, pinout, shape, etc are otherwise the same!

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to use an ESP8266 in the Arduino IDE
  • In August of 2014 Shanghai-based chip manufacturer, Espressif, released a ultra-cheap Serial to Wi-Fi chip called the ESP-01. At the heart of the ESP01 was an ESP8266 chip broken out into the 8 pins needed to program it via a microcontroller. You cou...

Product Comments


Customer Reviews

  1. Review by Peter verified purchaser
    Rating
    100

    Great product, works reliably, has been stable over the few days I've been testing, and has quite good range with the supplied card. I've used it with both the Adafruit Arduino (with a Pro Mini 3.3v) and Particle Photon libraries...both using I2C. (Posted on 9/11/2017)
