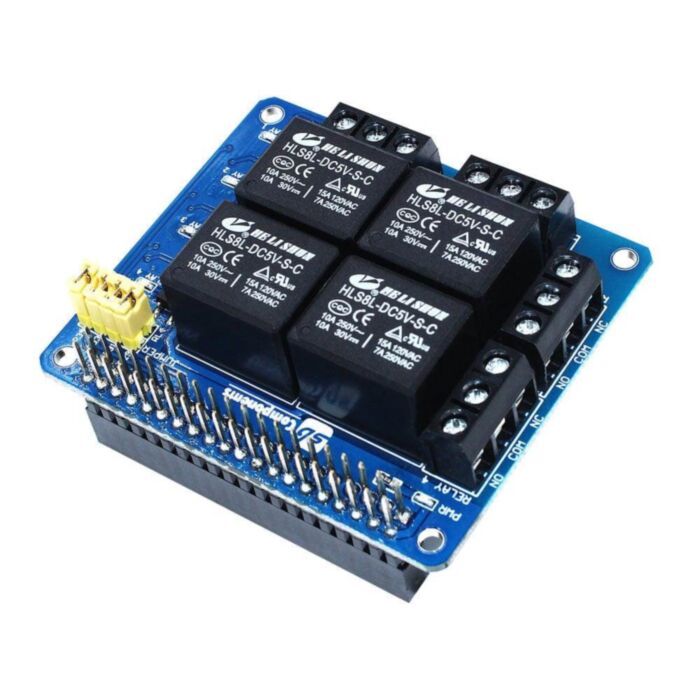

PiRelay V2 - Relay Board for Raspberry Pi

Rating:
100% of 100
SKU: CE08517 Brand: The Pi Hut Guides (1)
The PiRelay V2 is a Raspberry Pi relay add-on board that provides a solution for controlling high current/voltage devices and makes your home appliances...
$43.50 AUD, inc GST
$39.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

  • 10-25 $37.96 (exc GST)
  • 25+ $36.78 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The PiRelay V2 is a Raspberry Pi relay add-on board that provides a solution for controlling high current/voltage devices and makes your home appliances intelligent.

It's a nice solution for controlling devices that can't be directly controlled by the Raspberry Pi's Digital I/Os (GPIO). The standardised HAT form factor enables a smooth connection with Raspberry Pi.

The board includes indicator LEDs for easy debugging and can switch loads of up to 30VDC/10A.

Features

  • Control 4 appliances
  • Octocoupler
  • Relay status indicators
  • Compatible with Raspberry Pi 4, 3B+, 3, 2, Zero
  • 40-pin stacking header
  • Control PiRelay through PiRelay mobile app
  • Make your home IoT enabled

Package contents

  • 1 x PiRelay V2 HAT
  • 2 x 16mm nylon standoff
  • 2 x Nylon mounting screws
  • 2 x Nylon nuts

Resources

Specifications

  • 4 High-quality relays - loads up to 30VDC/10A
  • Standardized HAT shape and design
  • LED status indicators for each relay
  • 40-pin stacking header for accessing GPIO
  • Connectivity of the Relay with Raspberry Pi without GPIO
    • 5V
    • GND
    • BCM GPIO 5->Relay 4
    • BCM GPIO 6 -> Relay 3
    • BCM GPIO 13->Relay 2
    • BCM GPIO 19 -> Relay 1
  • Comes with development resources, including examples in python
  • Control through PiRelay app on Andriod
