Pimoroni Tiny 2350 - RP2350 Mini Dev Board with 4MB Flash - PIM721

SKU: ADA6248 Brand: Adafruit

The Pimoroni Tiny 2350 - 4MB is a postage stamp-sized RP2350 development board with a USB-C connection perfect for portable projects, wearables, and...

$24.75 AUD, inc GST

$22.50 AUD, exc GST

Available with a lead time
Expect dispatch between Sep 22 and Sep 25

Quantity Discounts:

10+ $21.60 (exc GST)
25+ $20.93 (exc GST)

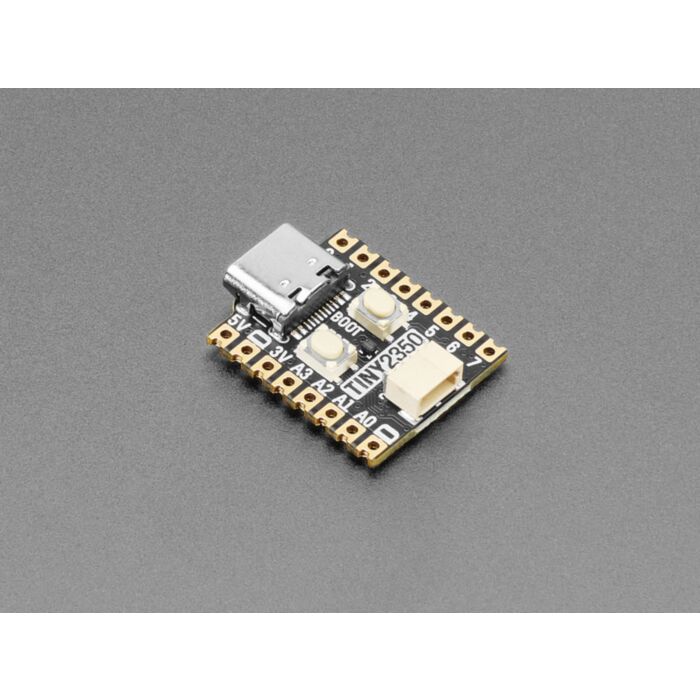

The Pimoroni Tiny 2350 - 4MB is a postage stamp-sized RP2350 development board with a USB-C connection perfect for portable projects, wearables, and embedding into stuff.

While the team at Pimoroni loves the Raspberry Pi Pico, they also wanted something smaller with a bunch more flash on board. Introducing the Tiny 2350 - a teeny tiny powerhouse with the chops to realize truly ambitious projects. It packs all the power of a dual-core Cortex M33 processor with 512KB of SRAM and 4MB of flash into a thumbnail-size PCB.

Programmable via USB-C, Tiny 2350 comes with 4MB of flash storage on board. The board is designed with castellated pads to allow it to be directly soldered onto a PCB (or you can attach headers to hook it up on a breadboard or connect things to it directly with wires). They've also managed to fit in a programmable RGB LED, a reset button, a Qw/ST (Qwiic/Stemma) connector for connecting up I2C devices, and some clever circuitry that lets you use the boot button as a user-controllable switch.

It's compatible with firmware built for the Raspberry Pi Pico 2 but offers a reduced number of pins due to its size. You can even run CircuitPython, Arduino IDE or MicroPython on it!

Technical Details

Getting Started

Features

Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
4MB of QSPI flash supporting XiP
USB-C connector for power, programming, and data transfer
User controllable RGB LED
Qw/ST (Qwiic/STEMMA QT) connector for attaching breakouts
Twelve IO pins (including four 12-bit ADC channels)
Reset and BOOT buttons (the BOOT button can also be used as a user button)
On-board 3.3V regulator (max regulator current output 300mA)
Input voltage range 3V - 5.5V
Programmable with C/C++, CircuitPython or MicroPython
Dimensions: approx 22.9 x 18 x 5.8mm (L x W x H, including the USB-C port)
