Piezo Vibration Sensor - Small Horizontal

SKU: SEN-09198

$4.76 AUD, inc GST
$4.33 AUD, exc GST

More Views

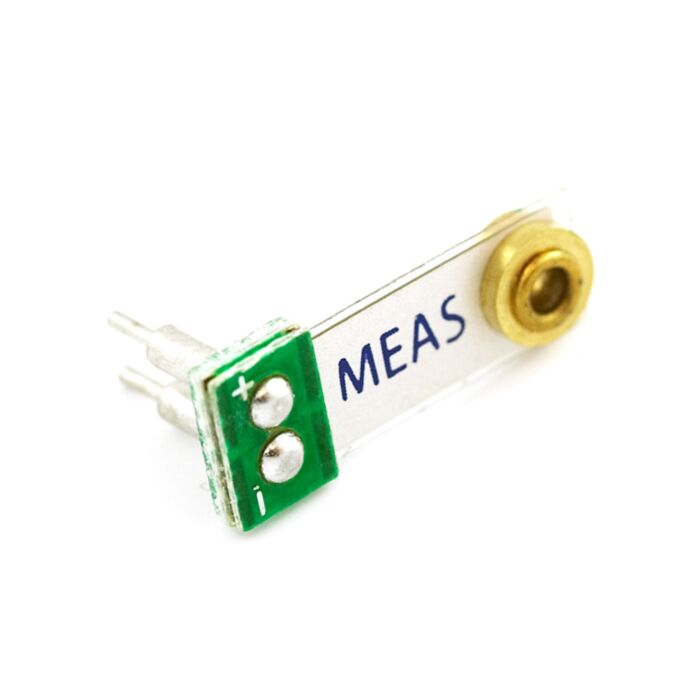

Piezo Vibration Sensor - Small Horizontal
4.76 AUD

SKU: SEN-09198

$4.76 AUD, inc GST
$4.33 AUD, exc GST
In stock, with a short lead time. 154 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

View our maker favourites for this product which are likely to be a great alternative.


Shipping Offer

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with machine pins that allows for horizontal mounting.

We’ve seen this used as great musical inputs.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads

Documents:

Documentation and Resources:
