Particulate Matter Sensor - SPS30

SKU: SEN-15103 Brand: Sparkfun

The Sensirion Particulate Matter Sensor SPS30 is a compact, high quality, optical particle sensor that uses laser scattering and Sensirion’s innovative contamination...

$91.65 AUD, inc GST

$83.32 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 18 and Nov 21

Quantity Discounts:

6-12 $80.82 (exc GST)
12+ $79.15 (exc GST)

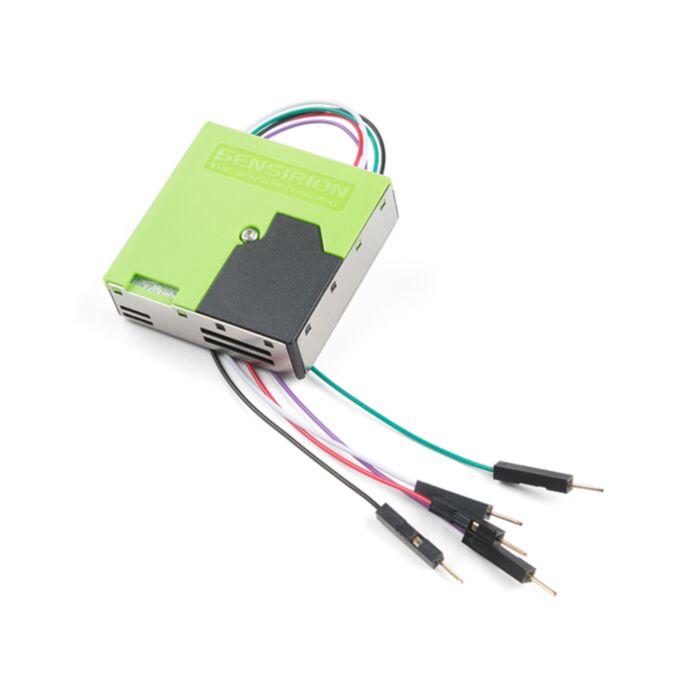

The Sensirion Particulate Matter Sensor SPS30 is a compact, high quality, optical particle sensor that uses laser scattering and Sensirion’s innovative contamination resistance technology to achieve superior binning and particle measurement. This sensor allows users to measure mass concentration and number of particles of 1 µg/m³, 2.5 µg/m³, 4 µg/m³, and 10 µg/m³.

The compact form factor, measuring just under 41mm x 41mm x 12mm, combined with a sensor lifetime over 8 years and a self cleaning procedure, makes the SPS30 the perfect sensor for projects in difficult to access locations. We’ve designed and included an easy to use 5-pin cable to make using the SPS30 a snap. The 1.5mm connector is broken out to 5 breadboard friendly wires color coded to make hooking up the SPS30 easy.

The SPS30 has a five pin interface that can communicate over two different protocols: UART and I²C. The SPS30 requires a 5V power supply, but can work with 3.3V and 5V microcontrollers. The logic is 5V and 3.3V tolerant.

Sensirion has written drivers for both the UART protocol and I²C. Unfortunately we’ve found the I²C is limited to only mass concentrations (not number concentrations) using the Arduino platform. So if you plan to use this sensor with an Arduino, use the UART interface. Both interfaces are described in their datasheet.

Includes

SPS30 Sensor
5-pin 150mm Interface Cable

Documents

Sensirion SPS30 Datasheet
Sensirion UART driver
Sensirion I2C driver (not fully compatible with Arduino but works for half the data readings)
