Particle M524 IoT Connectivity Module - WiFi & Cellular

The Particle M524 IoT Connectivity Module represents a breakthrough in dual-network connectivity solutions, combining WiFi and cellular capabilities in a compact M.2 form factor. This versatile module integrates seamlessly into projects requiring reliable, redundant connectivity while offering powerful processing capabilities through its 200MHz Cortex-M33 processor.

Key Features

• Dual-network connectivity with WiFi (2.4GHz/5GHz) and cellular (LTE Cat 1 with 2G/3G fallback)
• High-performance 200MHz Cortex-M33 processor with ARM TrustZone security
• 16MB flash storage with 4.5MB RAM for robust application deployment
• Built-in GNSS for precise location tracking
• Compact M.2 form factor for easy integration
• BLE 5.0 connectivity using shared WiFi antenna
• Edge ML model capability for advanced applications

Technical Specifications

• Processor: Realtek RTL8722DM MCU
• Memory: 2MB maximum user application size
• RAM: 3MB available for user applications
• Cellular: Quectel EG91-EX LTE Cat 1 modem
• WiFi: 802.11a/b/g/n supporting both 2.4GHz and 5GHz bands
• Bluetooth: BLE 5 with integrated antenna system

How to Use

Installation of the M524 module is straightforward using the standard M.2 NGFF connector interface. The module can be integrated directly onto a custom circuit board design, enabling rapid development and deployment of connected solutions. For initial prototyping and development, the module pairs perfectly with the Muon development board, which adds additional LoRaWAN capabilities.

Implementation Steps:

1. Mount the M524 module onto an M.2 compatible board
2. Connect the provided antennas (GNSS, cellular, and WiFi/BLE)
3. Configure the desired network connections through Particle's development environment
4. Deploy your application code using the available 2MB flash storage

What's in the Box

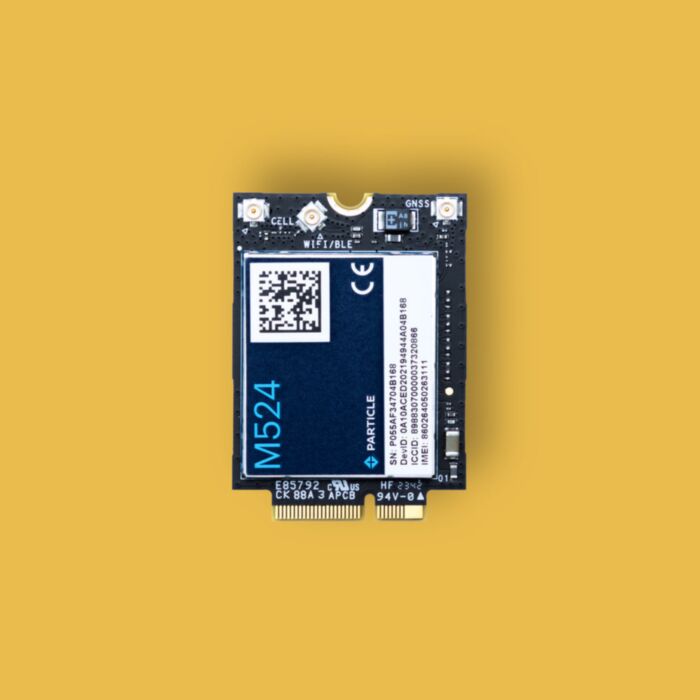

• Particle M524 IoT Connectivity Module (M-SoM)
• PARANTGN1EA GNSS antenna
• PARANTCW1 certified wideband cellular antenna
• PARANTWM1 certified WiFi/BLE antenna

Compatibility

The M524 module is designed to work seamlessly within the Particle ecosystem while maintaining compatibility with standard development tools and environments. It supports:

• Particle's development environment and cloud platform
• Standard M.2 form factor specifications
• European cellular networks (2G/3G/LTE Cat 1)
• Both 2.4GHz and 5GHz WiFi networks

Additional Resources

For detailed technical specifications and implementation guidelines, please refer to the comprehensive M-SoM Datasheet.
