Panel Volt Meter - 4.5V to 30VDC

SKU: ADA575

$13.50 AUD, inc GST
$12.27 AUD, exc GST

More Views

Panel Volt Meter - 4.5V to 30VDC
13.5 AUD

SKU: ADA575

$13.50 AUD, inc GST
$12.27 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 139 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 2nd of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

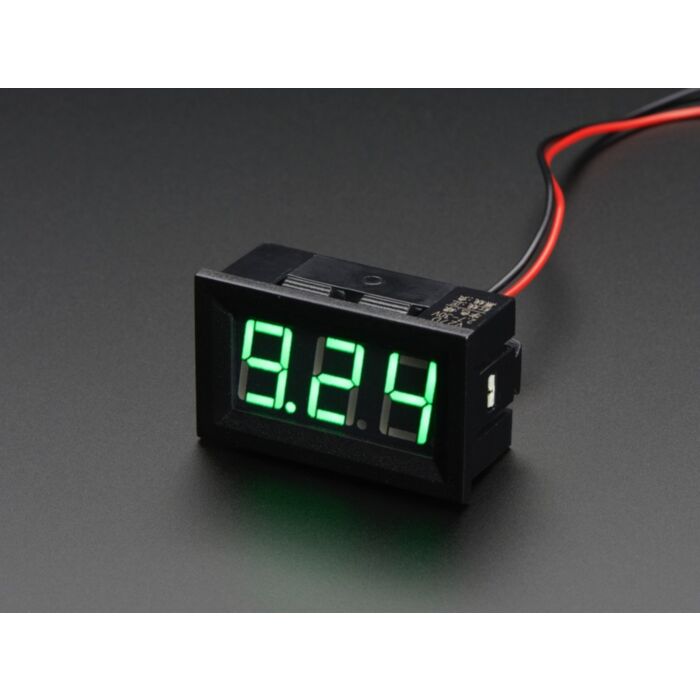

Put a voltage meter anywhere with this very handy display. This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up!

Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 0.56" tall 7-segment display. It works from 4.5V up to 30V and is reverse-polarity protected so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid green, which Adafruit found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

Technical Details

Dimensions:

  • Dimensions: 48x29x21mm
  • Panel cutout: 45.5mm x 26.5mm
  • Digit size: 14mm/0.56" high, green LEDs
  • Refresh rate: about 2 Hz

Power specifications:

  • 4.5V to 30V DC measurements
  • 0.1V precision
  • 10-15mA draw
  • Green LED display
  • Reverse polarity protected
