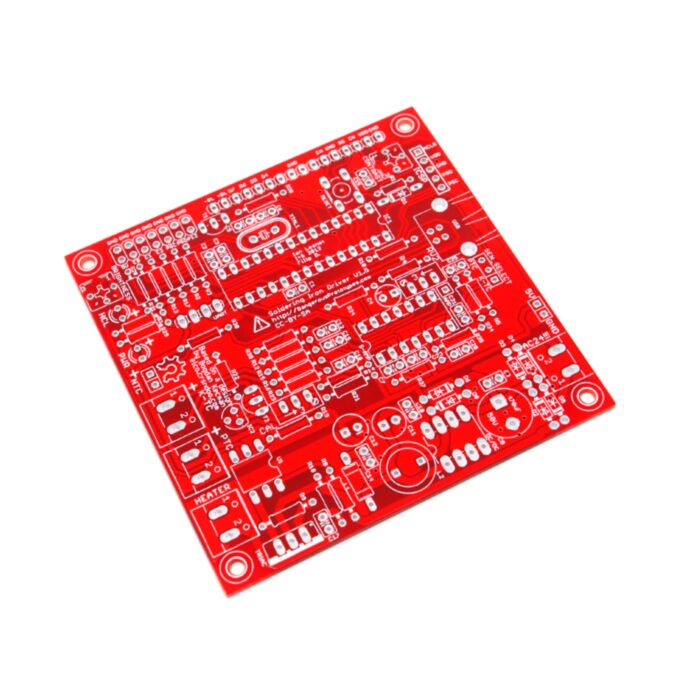

Open Soldering Station PCB (Seeed Studio)

SKU: SS319010046

$16.90 AUD, inc GST
$15.36 AUD, exc GST

More Views

Open Soldering Station PCB (Seeed Studio)
16.9 AUD

SKU: SS319010046

$16.90 AUD, inc GST
$15.36 AUD, exc GST
In stock, with a short lead time. 10 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 27th of Dec with Express Post within Australia.
Hardware hacking is more fun with open source, DIY tools. That's why Arhi designed a completely open soldering station controller motherboard

The completed PCB is the heart of a soldering station, able to control several types of name-brand (and clone) soldering iron pencils. The key to this universal design is the analog front-end which is capable of reading both thermocouple and PTC temperature sensors commonly used in most soldering irons.

Tip status is monitored by a mircrocontroller, and accurately adjusted via PID temperature control. Temperature, configuration, and calibration settings are shown on a 2x16 character LCD display, and controlled with rotary encoder knobs. Soldering pencils currently tested by the community include Hakko, Solomon irons, and Weller PES51 irons. See a full list of tested soldering pencils.

Features
  • Compatible with most PTC or TC type soldering irons
  • Accurate and adjustable PID temperature control
  • Potential for USB data logging, and firmware updates
  • UART/serial data logging
  • Uses a HD44780 2x16 character LCD
  • Low noise, zero crossing AC heater control
  • Dangerous Prototype's version is public domain (CC-0)
This is just a PCB. You will need to source parts, a transformer, and most importantly a suitable fuse.

WARNING

This PCB is intended to be used with hot pointy things and dangerous voltages. This is a community developed board, copies are available to interested experimenters. NO SUPPORT OR WARRANTY IS AVAILABLE WHATSOEVER. This project is not recommended for anyone.

Resources
If you encounter any problems when using this product, here is the forum from which you can get the technical support.
Documentation and Resources:
