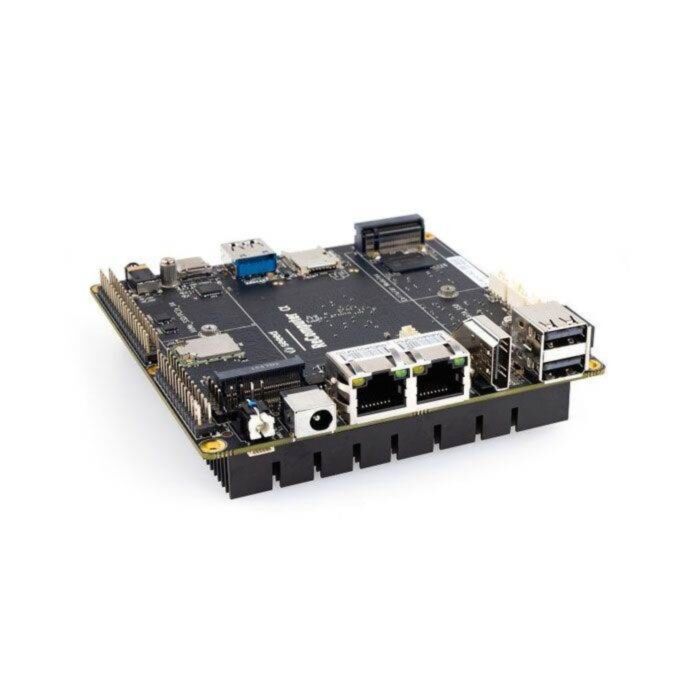

ODYSSEY - X86J4105864 v2 - Win11 Mini PC + RP2040

SKU: SS102110764 Brand: Seeed Studio
ODYSSEY - X86J4105 allows you to build Edge Computing applications with powerful CPU and rich communication interfaces. Based on Intel Celeron J4105 CPU, paired with an onboard RP2040 co-processor with broken out GPIO.
Special Price $484.75 AUD, inc GST
Regular Price $504.95 AUD, inc GST
$459.05 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 25

Quantity Discounts:

  • 3+ $426.91 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Edge Computing devices are playing an increasingly important role in the field of IoT. Nowadays, a computer is not just a big rectangular black box under the desk, or a small portable device working on your knees. Computers are ubiquitous devices that span calculating, communicating, and data storage. Based on this definition, here we would like to introduce our new product – the ODYSSEY - X86J4105.

ODYSSEY is a series of SBC (Single Board Computer), allowing you to build Edge Computing applications with ease. The ODYSSEY - X86J4105, based on Intel Celeron J4105, is a Quad-Core 1.5GHz CPU that bursts up to 2.5GHz. It includes all the powerful features of Mini PC such as including an 8GB LPDDR4 RAM, 64GB eMMC Storage(optional), onboard Wi-Fi/BLE, Dual Gigabyte Ethernet Ports, Audio Input and Output, USB Ports, HDMI, SATA Connectors and PCIe, however, within a cost-effective price. With simple connections to Mouse, Keyboard and Monitor to ODYSSEY - X86J4105, you will get a Desktop Mini PC right away. With eMMC versions, you even have the Windows 10 Enterprise pre-installed!

Just simply connect to a mouse, a keyboard and a monitor with the ODYSSEY – X86J4105, you will get a powerful Desktop Mini PC that can run Windows and Linux OS.

Note: This version of ODYSSEY - X86J4105864 has 64GB eMMC storage onboard and pre-installed Windows 11 Enterprise but not activated.

Features

  • Intel® Celeron® J4105, Quad-Core 1.5-2.5GHZ
  • Dual-Band Frequency 2.5GHz/5GHz WiFi/ Bluetooth 5.0
  • Intel® UHD Graphics 600
  • Dual Gigabit Ethernet
  • Integrated Arduino Coprocessor: Raspberry Pi® RP2040 32bit ARM® Dual-Core Cortex® M0+
  • Raspberry Pi 40-Pin Compatible GPIO Header
  • 2 x M.2 PCIe (B Key and M Key)
  • Support Windows 11 & Linux OS
  • Compatible with Grove Ecosystem

Specifications

  • Components: ODYSSEY - X86J4105
  • Processor: Intel® Celeron® J4105 (Frequency: 1.5 - 2.5GHz)
  • Coprocessor: Raspberry Pi® RP2040 32bit ARM® Dual-Core Cortex® M0+
  • Graphics: Intel® UHD Graphics 600 (Frequency: 250 – 750MHz)
  • Memory: LPDDR4 8GB
  • Wireless: Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160 & Bluetooth® 5.0
  • Networking: Intel® I225-V PCIe 2.5GbE LAN x2, Supports Wake-On-LAN, Supports PXE
  • Audio: Microphone + headphone Combo Connector
  • Headers:
    • 1 × 40-Pin header compatible with Raspberry Pi
    • 1 × 28-Pin header (RP2040)
    • 1 × Front Panel Audio Connector
    • 1 × 4-Pin herder (UART function from RP2040)
    • 1 × Fan Port (4 pin 1.25mm PWM 5V)
    • 3 × 4-Pin SATA Power Connector
    • 1 × 4-Pin herder (Power and Switch)
  • USB: USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1
  • Video Interfaces: HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a: Up to 4096x2160 @ 60Hz 24bpp
  • Expansion Slots: M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III
  • RTC: JST 1.0 CR2032 3V
  • TPM: Built-in TPM (2.0)
  • Power: DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 12V DC
  • Dimensions: 110x110mm
  • Certifications: FCC, CE

Part List

  • ODYSSEY - X86J4105 x 1
  • User Manual x 1
  • International Power Adapter
  • SATA Cable x 1
  • Antenna x 2
  • RTC Battery x 1
  • Heat Sink(Assembled)
  • Cooling Fan (Assembled) (Included in eMMC versions)
