Nano Base Board (C) for Raspberry Pi Compute Module 4

SKU: WS-23451 Brand: Waveshare
Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera...
$49.80 AUD, inc GST
$45.27 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 22 and Nov 25

Quantity Discounts:

  • 10-25 $43.46 (exc GST)
  • 25+ $42.10 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

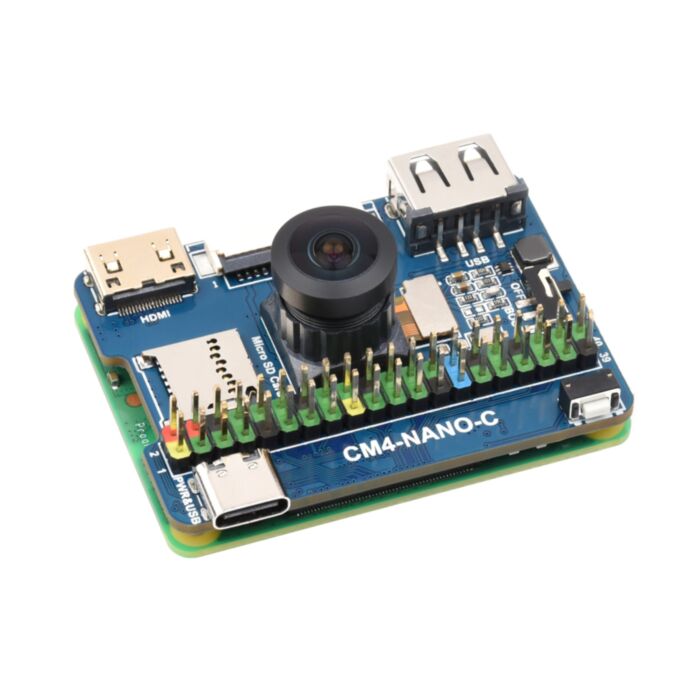

Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera
Nano Base Board (C) for CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC


Multiple Interfaces, Onboard 8MP Camera

Same Size As The CM4, Standard CM4 Socket, With Multiple Peripheral Interfaces
Onboard 8MP Camera Module With 160°FOV to meet your needs in the application

for reference only, the CM4 is NOT included.

Specifications
CM4 socket suitable for all variants of Compute Module 4
Connector Raspberry Pi 40PIN GPIO header × 1
USB USB 2.0 Type A port × 1
Display MIPI DSI port × 1 (15pin 1.0mm FPC connector)
Camera IMX219-D160 (8MP, 160°FOV)
Video Mini HDMI port × 1, supports 4K 30fps output
Storage TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input 5V
Dimensions 55.0 × 40.0mm

Application Example
for reference only, please refer to the part list for detailed package content.

What's On Board
  1. CM4 socket
    suitable for all variants of Compute Module 4
  2. Mini HDMI port
    supports 4K 30fps output
  3. DSI port
    MIPI DSI display interface
  4. USB2.0 port
    for connecting sorts of USB devices
  5. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  6. Power supply / Programming
    5V power supply, or used for eMMC burning
  7. 40PIN GPIO header
    for connecting sorts of HATs
  1. IMX219-D160 Camera
    8MP, 160° FOV
  2. User button
    Connect to GPIO21
  3. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or TF card)
  4. ACK Indicator
    CM4 working status
  5. PWR Indicator
    CM4 power status
Dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

What's the differences
CM4 Base Board Interface count and specifications
PoE Gigabit
ETH
40PIN
GPIO
PCIe USB? DSI HDMI CSI RTC Fan
Header
Power
Input
Features

NANO A
  v   2.0×1     ×1   5V CM4 sized

NANO B
×1 v   2.0×1 ×1 ×1 ×1   5V CM4 sized

NANO C
v   2.0×1 ×1 ×1 ×1   5V Onboard Camera

mini Base A
×1 v M.2 M 2.0×4 ×1 ×2 ×2 5V 5V mini size

mini Base B
×1 v M.2 M 2.0×4 ×1 ×2 ×2 v 5V 5V mini size

mini Base C
×1 v M.2 M 2.0×2 ×1 ×2 v 5V 5V Dedicated 40PIN LCD Connector

Touch screen
×1   M.2 M 2.0×4   ×1 ×1     5V IPS screen

Mini Dual Gigabit
×2 v   2.0×1         5V SH1.0 5V dual ETH

Binocular camera
×1 v M.2 M 2.0×4   ×2       5V dual 8MP
cameras

4CH RS485
×1     2.0×2   ×1 ×2 ×1 5V 7-36V dual ETH

WIFI6 DUAL ETH
×1 v M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH

Dual Gigabit ETH
×2 v 3.0×3 ×1 ×2 ×2 v 5/12V 7-36V

IoT Dual Gigabit ETH
×2 v 3.0×2 ×1 ×2 ×2 v 5/12V 5V 5G/4G support

IoT Base
v ×1 Gen2×1 2.0×2 ×2 ×2 ×2 v 5/12V 7-36V 5G/4G support
RS232
RS485
ADC

PoE Base (B)
v ×1 v Gen2×1 2.0×4 ×2 ×2 ×2 v 5/12V 5V RS232
RS485

PoE UPS Base
v ×1 v M.2 M 2.0×4 ×1 ×2 ×2 v 5/12V 7-36V UPS

PoE Base
v ×1 v 3.0×4 ×2 ×2 ×2 v 5/12V 7-36V

Raspberry Pi official
? ×1 v Gen2×1 2.0×4 ×2 ×2 ×2 v 12V 12V

Wireless base
  ×1   M.2 B /
Mini-PCIe
2.0×3   ×1 ×1 v 5/12V 5V or
7-36V
5G/4G support
RS485
CAN
rail-mount

UPS Wireless base
  ×1   M.2 B 2.0×3   ×1 ×1 v 5/12V 5V or
7-36V
With UPS
5G/4G support
RS485
CAN
rail-mount

NAS Mini Computer
  ×2 v M.2 M×2/
Mini-PCIe
3.0×2   ×2 ×2 v   5V dual M.2 M KEY slots

5" touch screen
? ×1 v M.2 M 2.0×4   ×1 ×2 v 5/12V 5V

7" all-in-one
  ×1   M.2 M 2.0×4 used ×1 used v 5/12V
used
7-36V touch screen
camera
speaker

13.3" all-in-one
  ×1     2.0×2           12V HD touch screen

13.3" Magic Mirror
  ×1     2.0×2           12V HD screen,
Speech Assistant
Note ? USB 3.0 is equivalent to USB 3.2 Gen1
? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Weight: 0.0387 kg

Quick Overview

Actual Weight: 0.018 kg

  1. CM4-NANO-C x1
  2. IMX219-D160 x1
  3. 2*20PIN color-coded straight pinheader x1
1
2
3
