Nano Base Board (B) for CM5 - With PCIe

SKU: WS-30581 Brand: Waveshare
Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5...
$32.15 AUD, inc GST
$29.23 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 05 and Aug 08

Quantity Discounts:

  • 10+ $28.05 (exc GST)
  • 25+ $27.18 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5
Nano Base Board (B) for CM5

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Base Board for Compute Module 5 Lite / eMMC

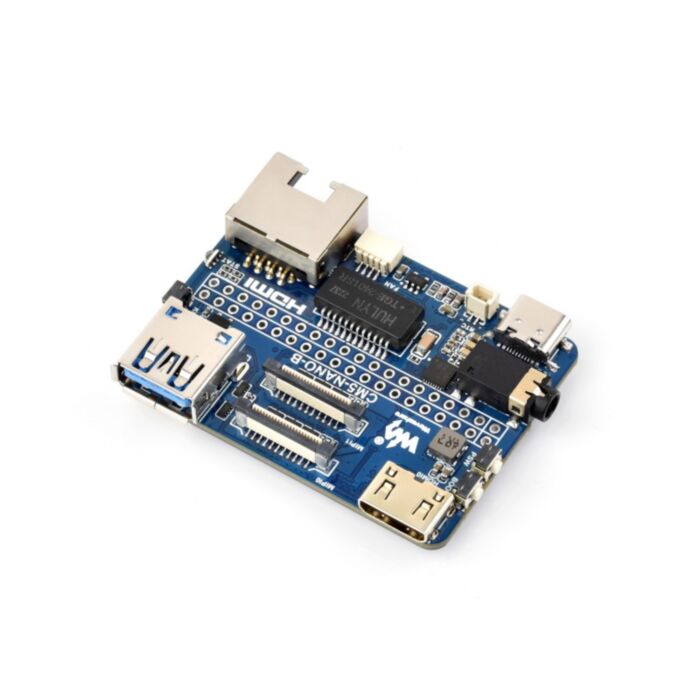

Nano Base Board (B) for Raspberry Pi Compute Module 5, front view

Same Size As The CM5

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Nano Base Board (B) for Raspberry Pi Compute Module 5, connecting with CM5
Note: the CM5 is NOT included. Please buy it separately.

Specifications
CM5 socketSuitable for all variants of Compute Module 5
NetworkingGigabit Ethernet RJ45 connector
ConnectorRaspberry Pi 40PIN GPIO interface × 1
USBUSB 3.2 Gen1 Type A port × 1
MIPIMIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
VideoMini HDMI port × 1, supports 4K output
AudioUSB audio 3.5mm jack
StorageTF card socket for Compute Module 5 Lite (without eMMC) variants
Power inputDC 5V 5A
PCIe16PIN PCIe connector (PCIe Gen2/3 x1)
Dimensions55 × 41mm

What's On Board
Nano Base Board (B) for Raspberry Pi Compute Module 5, onboard components
  1. CM5 socket
    Suitable for all variants of Compute Module 5
  2. PCIe interface
    16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards
  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  4. Other function pins
    Supports for extended functions
  5. Mini HDMI port
    Supports 4K output
  6. BOOT button
    Press before powering on and release after powering on to enter the burning mode
  7. PSW button
    power button
  8. 3.5mm jack
    Audio output
  1. Power supply / Programming
    5V power supply, or used for eMMC burning
  2. 2PIN JST-SH RTC battery header
  3. FAN header
    4PIN JST-SH PWM fan header for connecting a cooling fan
  4. RJ45 Gigabit Ethernet port
    for network access
  5. Dual-color LED indicator
    Red light: Raspberry Pi power indicator
    Green light: Raspberry Pi working status indicator
  6. User button
    connected to GPIO21
  7. USB port
    USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
  8. Dual MIPI interfaces
    for connecting to DSI displays or CSI cameras
  9. 40PIN GPIO interface
    suitable for connecting to various HAT modules

Outline dimensions
Nano Base Board (B) for Raspberry Pi Compute Module 5, outline dimensions

About Compute Module 5
Raspberry Pi Compute module 5, front view
Newly upgraded, more powerful
  • Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
  • More options for RAM (2GB / 4GB / 8GB / 16GB)
  • More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
  • Faster eMMC Flash storage, up to 200 Mbps data rate
  • Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
  • Adopts B to B connectors, most compatible with Compute Module 4
  • Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
  • Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.


What's the differences
CM5 Base BoardInterface count and specifications
PoEGigabit
ETH
40PIN
GPIO
PCIeUSB?MIPIHDMIRTCFan
Header?
Power
Input
Features

NANO A
  v 3.0×1×2 SH1.0v5VCM5 sized

NANO B
 ×1v16PIN PCIe3.0×1×2vSH1.0v5VCM5 sized

mini Base A
 ×1v16PIN PCIe3.0×2
2.0×2
×2×2ML/CR1220v5Vmini size

mini Base B
 ×1vM.2 M KEY3.0×2
2.0×2
×2×2ML/CR1220v5Vmini size, onboard EEPROM and encryption chip

Mini Dual Gigabit
 ×2v 3.0×1  SH1.0v5Vdual ETH

PoE Base
v×1vM.2 M3.0×2
2.0×2
×2×2ML/CR1220v5VUSB×4

Raspberry Pi official
?×1vM.2 M3.0×2×2×2ML/CR1220v5VOfficial IO base board
Note? USB 3.0 is equivalent to USB 3.2 Gen1.
? Unless otherwise specified, the Fan header usually is JST-SH type connector.
? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Weight: 0.019 kg

Quick Overview

  1. CM5-NANO-B x1
  2. 2*20PIN color-coded straight pinheader x1
1CM5-NANO-B
