Clearance: This board is being replaced by the newer MinIMU-9 v3, which uses newer sensors and offers several improvements over this product, including a wider maximum magnetic sensing range and better gyroscopic accuracy and stability. The new v3 version is pin-compatible with v2, but changes in I²C addresses and configuration registers might require some changes to software written for older versions (this should not be an issue if you are using Pololu's Arduino libraries). This product will be discontinued when stock runs out and is not recommended for new designs where continued part availability is important.

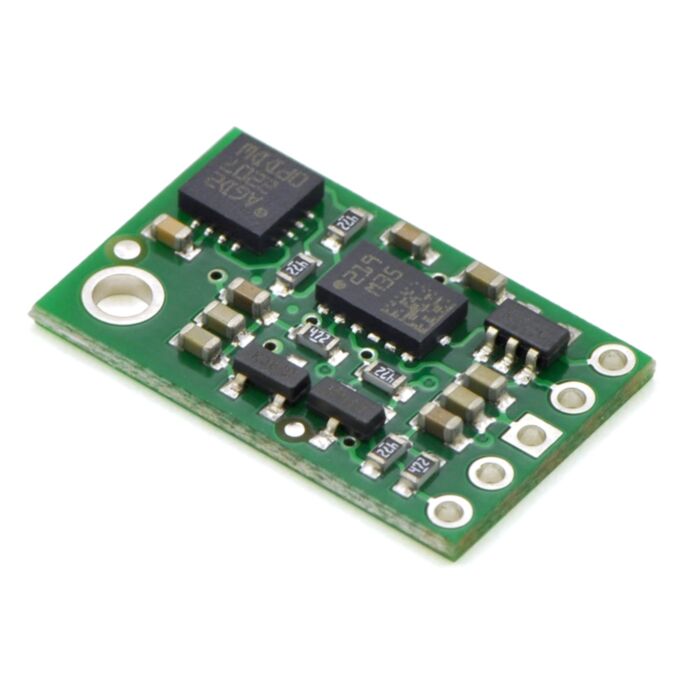

The Pololu MinIMU-9 v2 is a compact (0.8″ × 0.5″) board that combines ST’s L3GD20 3-axis gyroscope and LSM303DLHC 3-axis accelerometer and 3-axis magnetometer to form an inertial measurement unit (IMU); Pololu therefore recommend careful reading of the L3GD20 datasheet (2MB pdf) and the LSM303DLHC datasheet (629k pdf) before using this product. These sensors are great ICs, but their small packages make them difficult for the typical student or hobbyist to use. They also operate at voltages below 3.6 V, which can make interfacing difficult for microcontrollers operating at 5 V. The MinIMU-9 v2 addresses these issues by incorporating additional electronics, including a voltage regulator and a level-shifting circuit, while keeping the overall size as compact as possible. The board ships fully populated with its SMD components, including the L3GD20 and LSM303, as shown in the product picture.
The MinIMU-9 v2 is pin-compatible with the AltIMU-10, which offers the same functionality augmented by a digital barometer that can be used to obtain pressure and altitude measurements. The AltIMU includes a second mounting hole and is 0.2″ longer than the MinIMU-9 v2. Any code written for the MinIMU-9 v2 should also work with the AltIMU-10.
|Side-by-side comparison of the MinIMU-9 v2 with the AltIMU-10.|
The L3GD20 and the LSM303DLHC have many configurable options, including dynamically selectable sensitivities for the gyro, accelerometer, and magnetometer, as well as a choice of output data rates for each sensor. The two ICs can be accessed through a shared I²C/TWI interface, allowing all three sensors to be addressed individually via a single clock line and a single data line. The nine independent rotation, acceleration, and magnetic readings (sometimes called 9DOF) provide all the data needed to make an attitude and heading reference system (AHRS). With an appropriate algorithm, a microcontroller or computer can use the data to calculate the orientation of the MinIMU board; the gyro can be used to very accurately track rotation on a short timescale, while the accelerometer and compass can help compensate for gyro drift over time by providing an absolute frame of reference. The respective axes of the two chips are aligned on the board to facilitate these sensor fusion calculations. (For an example of such a system using an Arduino, see the picture below and the Sample Code section at the bottom of this page.)
|Visualization of AHRS orientation calculated from MinIMU-9 readings.|
The carrier board includes a low-dropout linear voltage regulator that provides the 3.3 V required by the L3GD20 and LSM303, allowing the module to be powered from a single 2.5-5.5 V supply. The regulator output is available on the VDD pin and can supply almost 150 mA to external devices. The breakout board also includes a circuit that shifts the I²C clock and data lines to the same logic voltage level as the supplied VIN, making it simple to interface the board with 5 V systems, and the board’s 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.
- Dimensions: 0.8″ × 0.5″ × 0.1″ (20 × 13 × 3 mm)
- Weight without header pins: 0.7 g (0.02 oz)
- Operating voltage: 2.5 to 5.5 V
- Supply current: 10 mA
- Output format (I²C):
- Gyro: one 16-bit reading per axis
- Accelerometer: one 12-bit reading (left-justified) per axis
- Magnetometer: one 12-bit reading (right-justified) per axis
- Sensitivity range (configurable):
- Gyro: ±250, ±500, or ±2000°/s
- Accelerometer: ±2, ±4, ±8, or ±16 g
- Magnetometer: ±1.3, ±1.9, ±2.5, ±4.0, ±4.7, ±5.6, or ±8.1 gauss
A 5×1 strip of 0.1″ header pins and a 5×1 strip of 0.1″ right-angle header pins are included, as shown in the picture below. You can solder the header strip of your choice to the board for use with custom cables or solderless breadboards, or you can solder wires directly to the board itself for more compact installations.
Using the MinIMU-9 v2
A minimum of four connections are necessary to use the MinIMU-9 v2: VIN, GND, SCL, and SDA. VIN should be connected to a 2.5-5.5 V source, GND to 0 volts, and SCL and SDA should be connected to an I²C bus operating at the same logic level as VIN. (Alternatively, if you are using the board with a 3.3 V system, you can leave VIN disconnected and bypass the built-in regulator by connecting 3.3 V directly to VDD.)
|SCL||Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V|
|SDA||Level-shifted I²C data line: HIGH is VIN, LOW is 0 V|
|GND||The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.|
|VIN||This is the main 2.5 – 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C bus high bits up to this level.|
|VDD||3.3 V regulator output or low-voltage logic power supply, depending on VIN. When VIN is supplied and greater than 3.3 V, VDD is a regulated 3.3 V output that can supply up to approximately 150 mA to external components. Alternatively, when interfacing with a 2.5 – 3.3 V system, VIN can be left disconnected and power can be supplied directly to VDD.|
The data ready and interrupt pins of the L3GD20 and the LSM303DLHC are not accessible on the MinIMU-9 v2; if you need these outputs, consider using Pololu's L3GD20 carrier and LSM303DLHC carrier boards.
The above schematic shows the additional components the carrier board incorporates to make the L3GD20 and LSM303DLHC easier to use, including the voltage regulator that allows the board to be powered from a single 2.5-5.5 V supply and the level-shifter circuit that allows for I²C communication at the same logic voltage level as VIN. This schematic is also available as a downloadable pdf: MinIMU-9 v2 schematic (149k pdf).
The L3GD20 and LSM303DLHC readings can be queried and the devices can be configured through the I²C bus. The three sensors (the L3GD20 gyro and the LSM303DLHC accelerometer and magnetometer) act as slave devices on the same I²C bus (i.e. their clock and data lines are tied together to ease communication). Additionally, level shifters on the I²C clock (SCL) and data lines (SDA) enable I²C communication with microcontrollers operating at the same voltage as VIN (2.5 – 5.5V). A detailed explanation of the protocols used by each device can be found in the L3GD20 datasheet (2MB pdf) and the LSM303DLHC datasheet (629k pdf), and more detailed information about I²C in general can be found in NXP’s I²C-bus specification (371k pdf).
The gyro, accelerometer, and magnetometer each have separate slave addresses on the I²C bus. The board pulls the gyro’s SA0 pin high, setting its slave address to 1101011b. The accelerometer’s slave address is fixed to 0011001b and the magnetometer’s slave address is fixed to 0011110b.
In Pololu's tests of the MinIMU-9 v2, Pololu were able to communicate with both chips at clock frequencies up to 400 kHz; higher frequencies might work but were not tested. The chips themselves and carrier board do not meet of some requirements to make the devices compliant with I²C fast mode. They are missing 50 ns spike suppression on the clock and data lines, and additional pull-ups on the clock and data lines might also be necessary to achieve compliant signal timing characteristics.
Pololu have written a basic L3GD20 Arduino library and LSM303 Arduino library that make it easy to interface the MinIMU-9 with an Arduino or Arduino-compatible board like an A-Star. The libraries make it simple to configure the sensors and read their raw gyro, accelerometer, and magnetometer data.
For a demonstration of what you can do with this data, you can turn an Arduino connected to a MinIMU-9 into an attitude and heading reference system, or AHRS, with this Arduino program. It uses the data from the MinIMU-9 to calculate estimated roll, pitch, and yaw angles, and you can visualize the output of the AHRS with a 3D test program on your PC (as shown in a screenshot above). This software is based on the work of Jordi Munoz, William Premerlani, Jose Julio, and Doug Weibel.
The datasheets provide all the information you need to use the sensors on the MinIMU-9 v2, but picking out the important details can take some time. Here are some pointers for communicating with and configuring the L3GD20 and LSM303DLHC that Pololu hope will get you up and running a little bit faster:
- The gyro, accelerometer, and magnetometer are all off by default. You have to turn them on by setting the correct configuration registers.
- You can read or write multiple gyro or accelerometer registers in a single I²C command by asserting the most significant bit of the register address to enable address auto-increment.
- The magnetometer will not update its data until all 6 data bytes have been read during a single I²C transfer. All the bytes can be read in the same transfer using the magnetometer’s automatic sub-address updating feature (this feature is enabled by default).
- The gyro, accelerometer, and magnetometer all output readings in a 16-bit format (obtained by combining the values in two 8-bit registers for each axis), but only the gyro readings contain 16 bits of precision. The accelerometer and magnetometer readings contain a maximum of 12 bits of precision; for the accelerometer, at least the lowest 4 bits of the output values are always 0, and for the magnetometer, the highest 4 bits of the output values are always 0.
- The accelerometer gives low-resolution 10-bit readings by default (the lowest 6 bits of the output are always 0). To get the full 12-bit resolution, you must set the HR (high resolution) bit in the CTRL_REG4_A register.
- The LSM303DLHC combines an accelerometer and a magnetometer made by separate manufacturers into one IC, so there are fairly significant differences in their features, functionality, and interfaces. The interface of the L3GD20 is similar to that of the accelerometer in the LSM303DLHC.
we carry several inertial measurement and orientation sensors. The table below compares their capabilities:
|Gyros (3x)||Accels (3x)||Mag (3x)||Altitude||Roll||Pitch||Yaw||Quaternion||Enclosure|
|Pololu MinIMU-9 v2|
|CHR-UM6-LT Orientation Sensor|
|CHR-UM6 r2 Orientation Sensor|
Documentation and Resources:
