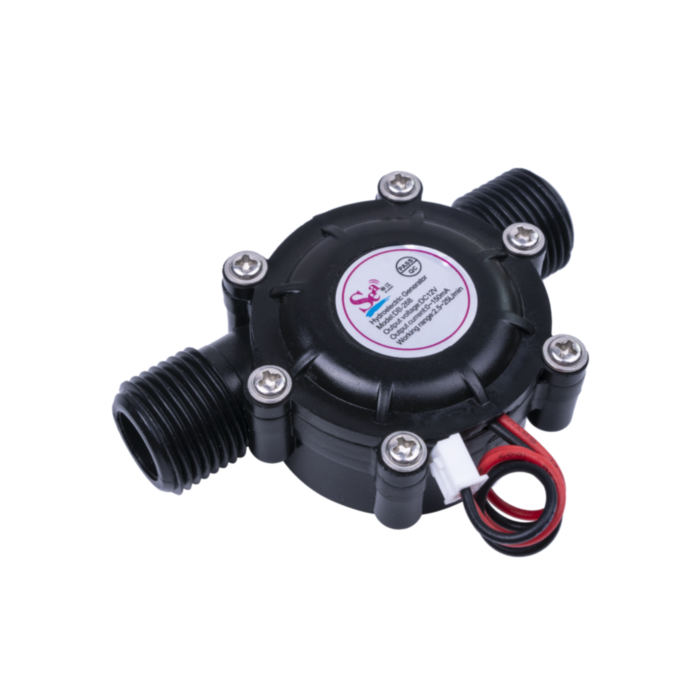

Micro Water Turbine - Hydroelectric Generator (DC-12V) with G1/2'' Thread
Quantity Discounts:
- 10-25 $18.89 (exc GST)
- 25+ $18.30 (exc GST)
Out of Stock
Sign up to get notified when it's available to order.
Ever wondered about charging your mobile phones and batteries using water? Is it even possible?
Well. We would like to present to you the Micro Water Turbine – Hydraulic Generator. This little device can turn your running water into electricity! It has a durable plastic shell for better protection and also it is a good solution to save electricity to some extent! This generator is able to produce a maximum of 12V from flowing water.
If you want a 6V output from this generator check this out
Features
- Compact Size for easy deployment
- Durable Plastic Shell for better protection
- Better solution for energy conservation
- Ability to charge different devices such as lithium batteries, mobile phones, and radios
- Anti-rust components inside
How Does This Hydroelectric Generator Work?
This small device works in the same mechanism as a hydropower plant which is normally located in the middle of a river by building a dam. Once you set up this small device with a water flow that has considerable pressure (connect to a faucet, connect at the bottom of a water tank), the pressure of the flowing water helps in rotating a turbine which sits inside the device. This turbine has small blades inside and these blades start rotating when the water hits them. Then this is connected to a motor inside which in turn rotates as well, resulting in generating electricity. Finally, it is connected to a small circuit inside in order to regulate the output voltage.
Specifications
- Output Voltage:
- 12 +/- 0.3 VDC water flow 10 L / min
- 5 ~ 12 +/- 0.3 VDC Water flow 4L / min
- 3 +/- 0.25 VDC Water flow 3.5L / min
- Flow range: 3.5 ~ 20L / min (pressure 0.05-0.2mpa)
- Maximum Output Current: 150mA
- Resistance Between Line: 10.5 ± 0.5Ω
- Insulation Resistance: 10MΩ
- Maximum Working Pressure: 1.2 Mpa
- Outlet Closed Highest Pressure Resistance: 0.6Mpa
- Start Water Pressure: 0.05Mpa
- Axial Clearance Approx: 0.2~1.0mm
- Mechanical Noise: ≤ 55dB
- Generator Single: Volume 90g
- Generator Life: ≥ 3000h
- Working Temperature Range: 0 ~ 80 ° C
- Storage temperature: -25 ~ 65 ° C
- Maximum allowable ambient temperature: 100 ° C max for 30 min
Applications
- Charge lithium batteries
- Charge mobile phones
- Applications that need 12V stable voltage supply
