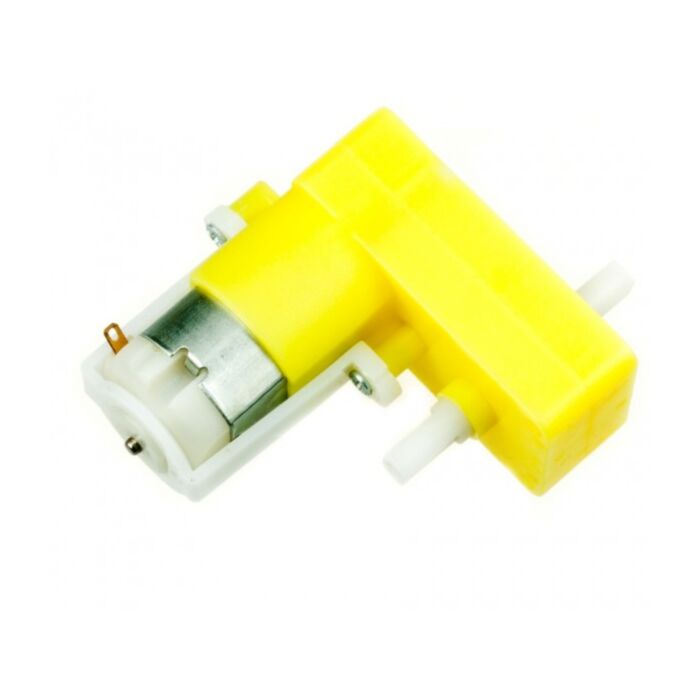

Micro DC Geared Motor with Back Shaft

Rating:
100% of 100
SKU: FIT0016 Brand: DFRobot
The 6V, 180rpm Micro DC Geared Motor with Back Shaft is ideal for DIY enthusiasts and is designed to easily incorporate the DFRobot Encoder. These motors are inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. The DFRobot RoMeo microcontroller (sold separately) is able to complete the closed-loop PID making use of theoptional encoders.
$5.90 AUD, inc GST
$5.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

  • 10-25 $5.20 (exc GST)
  • 25+ $5.09 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a TT Micro DC Geared Motor with Back Shaft working at 6V with 160rpm. The TT motor series the most popular DC motors for DIY enthusiasts.  It is designed to easily incorporate the DFRobot Encoder. These motors are inexpensive, small, easy to install, and ideally suited for use in a mobile robot. The DFRobot ROMEO microcontroller is able to complete the closed-loop PID making use of the Gravity:TT Motor Encoders Kit.

We recommend this rubber wheel for this motor.

Specification

Electrical Characteristics:
  • Operating Voltage Range: 3~7.5V
  • Rated Voltage: 6V
  • Max. No-load Current(3V): 140 mA
  • Max. No-load Current(6V): 170 mA
  • No-load Speed(3V): 90 rpm
  • No-load Speed(6V): 160 rpm
  • Max. Output Torque: 0.8 kgf.cm
  • Max. Stall Current: 2.8 A
Operating Conditions:
  • Rated Load: 0.2  kgf.cm
  • Operating Temperature: -10~+60 ?
  • Storage Temperature: -30~+85 ?
  • Motor Type: 130
Mechanical Characteristics:
  • Output Mode: 2 sides
  • Gear Ratio: 1:120
  • Max. Diameter of Output Axle: 5.4 mm
  • Net Weight: 45 g

Documents

Parts List

  • Micro DC Geared Motor with Back Shaft   x1
