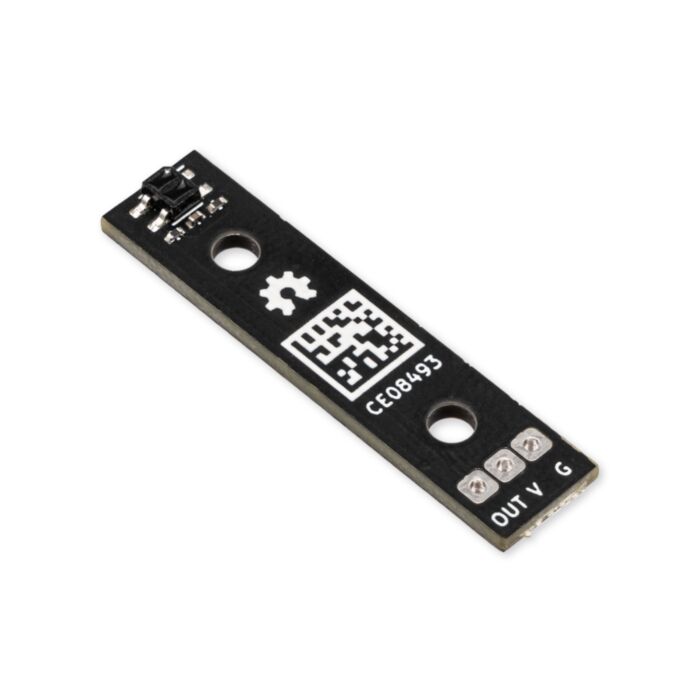

Makerverse IR Line Sensor

SKU: CE08493 Brand: Makerverse

Detect lines with the spare analog channels on your microcontroller!

$1.35 AUD, inc GST
$1.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

Quantity Discounts:

  • 10-25 $1.18 (exc GST)
  • 25+ $1.15 (exc GST)
- +

204 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If you're making a line-following robot check out these analog line sensors!

Note: Requires headers; we recommend right angle headers

Construct a line...

  • Use tape
  • Black Texta

Specifications

  • Dimensions: 9mm x 40mm x 3.5mm
  • Mounting Holes: 2x 3.2mm holes, 21.2mm apart
  • Recommended Mounting height: 7mm+ from the bottom of the sensor
  • Supply Voltage: 3.3V
  • Analog output range: 0 - 3.3V
  • Datasheet

Example Code (MicroPython)

# Example for detecting a line using the Makerverse IR Line Sensor


from machine import ADC
from utime import sleep


line_sensor = ADC(28) # Use any of the 3 ADC channels on the Pico

line_threshold = 45000 # Set this according to your ambient conditions

while True:
    line_sensor_value = line_sensor.read_u16() # Get a reading from the ADC
    # print(line_sensor_value) # Uncomment this line to find the threshold

    if line_sensor_value > line_threshold: #
        print('Line detected!')
        # TODO: Anything! Put your code here!

    sleep(0.2)
