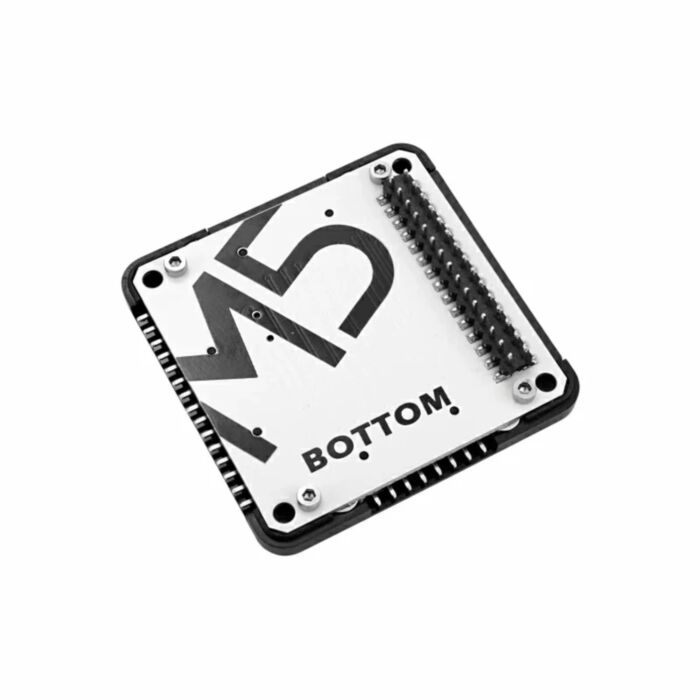

M5Stack Magnetic Battery Base 110mAh

The M5Stack Magnetic Battery Base 110mAh is a versatile power expansion module designed to enhance the functionality and portability of M5Stack development boards. This upgraded version (V1.1) features a convenient battery switch for improved power management and magnetic attachment capabilities for flexible mounting options.

Equipped with both male and female 2.54mm pin headers, this base module facilitates seamless expansion possibilities while providing reliable power through its integrated 110mAh lithium battery. The magnetic mounting system enables quick installation and removal, making it ideal for rapid prototyping and development scenarios.

Key Features & Technical Specifications

• 110mAh lithium battery capacity
• Integrated power switch for extended battery life
• Magnetic base attachment system
• 2.54mm spaced male and female pin headers
• Dimensions: 54 x 54 x 11mm
• Weight: 22.8g
• Compatible with M5Core/Core2/CoreS3 development boards

How to Use

Installation is straightforward through the following steps:

1. Align the bottom sticker pin with the corresponding host pins on your M5Stack device
2. Attach the battery base to your M5Stack development board
3. Use the integrated power switch to control battery operation
4. Optionally utilise the magnetic base for mounting on compatible surfaces

What's in the Box

• 1x M5Stack Magnetic Battery Base 110mAh (BLACK-BOTTOM_V1.1)

Compatibility

This battery base is designed to work seamlessly with various M5Stack development boards including:

• M5Stack ESP32 Basic Core IoT Development Kit
• M5Stack Core2 ESP32 IoT Development Kit
• M5Stack CoreS3

Additional Resources

• Official Documentation

About M5Stack

M5Stack is a leading manufacturer of modular electronic development tools and IoT devices. Their innovative stacking system and comprehensive range of compatible modules have established them as a preferred choice in educational institutions and professional development environments. The company's commitment to open-source hardware and software solutions has created a robust ecosystem for learning, prototyping, and development.
