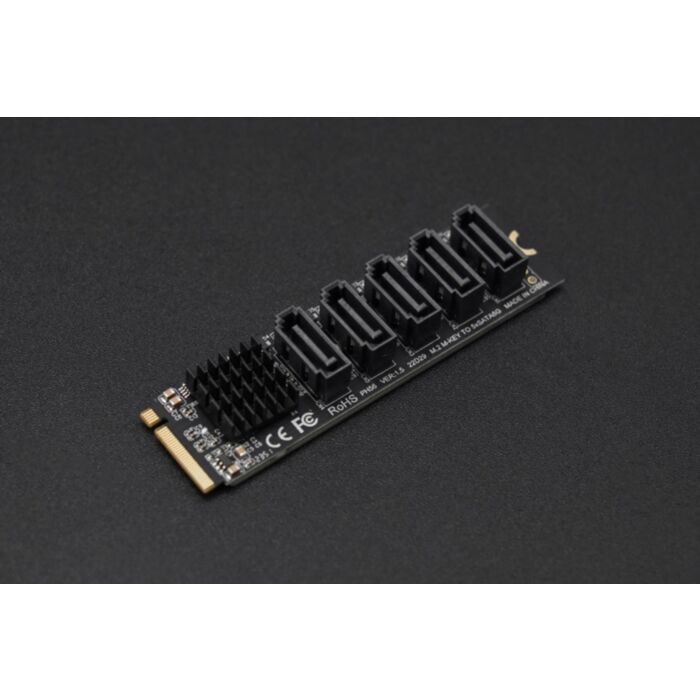

M.2 M Key to SATA3.0 Expansion Board (Compatible with LattePanda Sigma)

SKU: FIT0970 Brand: DFRobot

The M.2 M Key to SATA3.0 Expansion Card provides 5 SATA 3.0 extension protocols. It can help LattePanda Sigma connect to more data storage drives like...

Special Price $34.07 AUD, inc GST

Regular Price $43.79 AUD, inc GST

$30.97 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 16 and May 20

This is an M.2 M Key to SATA3.0 expansion board specially prepared for LattePanda Sigma users.it requires no driver installation and is plug and play. It has high-speed transmission and stable performance. SATA3.0 interface can be utilized for connecting SATA devices, such as optical drives, Solid State Drives (SSD), Hard Disk Drives (HDD), and Solid State Hybrid Drives (SSHD).The expansion card comes with 5 SATA interfaces and can be used with the sigma motherboard to connect external SATA interface hard drives to provide Sigma with more data storage space.

M.2 M Key to SATA3.0 Expansion Card use JMB585 chip

The expansion card is equipped with an indicator light. When the corresponding SATA device is connected, the indicator light will light up; when data is read or written, the indicator light will flash, allowing you to observe the status of the expansion card and hard disk in real time.

M.2 M Key to SATA3.0 Expansion Card equipped with an indicator light

In order to enhance operational stability, the chip is also equipped with an aluminum alloy heat sink to provide better heat dissipation.

M.2 M Key to SATA3.0 Expansion Card equipped with an aluminum alloy heat sink

Wiring Diagram of M.2 M Key to SATA3.0 Expansion Card and LattePanda Sigma

Features

With 5 SATA3.0 interfaces

With heat sink, the performance is more stable

With indicator light to check status in real time

Compatible with multiple systems

Specification

Transmission protocol: PCIe 3.0x2, supports up to two channels of PCIe XPRESS

Compatibility: Hard drives that support SATA protocol

Speed: Uplink PCIe 3.0 X2 16Gbps, Downlink SATA3.0 6Gbps*5

Number of extensions: SATA3.0*5

Compatible systems: Windows/Linux/Mac os

Size: 22*80mm

Documents

Product wiki

Parts List

M.2 M Key to SATA3.0 Expansion Card x1
