M.2 M Key to PCIe4.0x16 Graphics Card Extension Cable (Compatible with LattePanda Sigma)

SKU: FIT0974 Brand: DFRobot
The M.2 M Key to PCIe4.0 x16 graphics card Extension Cable is designed for LattePanda Sigma SBC. Features a PCIex16 card slot and up to 64G/bps bandwidth...
$58.10 AUD, inc GST
$52.82 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 17 and Jan 21

Quantity Discounts:

  • 6-12 $50.71 (exc GST)
  • 12+ $49.12 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

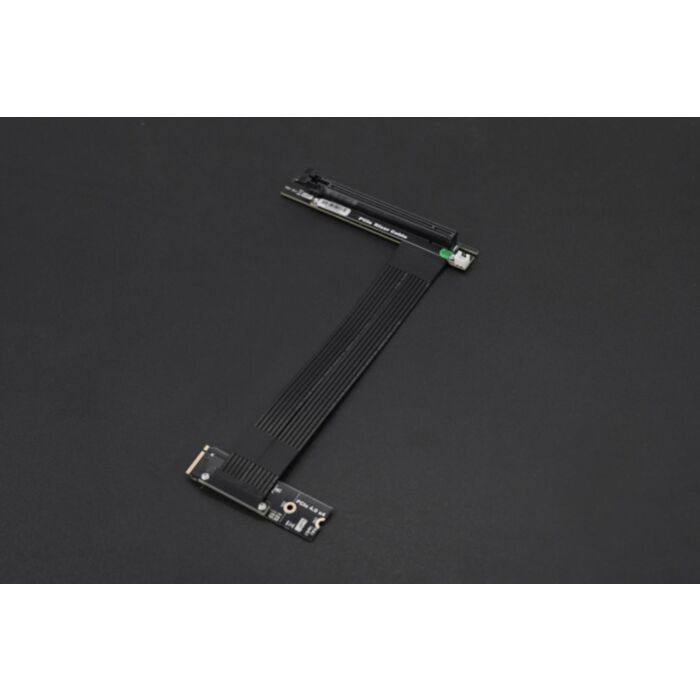

This is an M.2 M Key to PCIe4.0x16 graphics card extension cable specially prepared for LattePanda Sigma users. It has a PCIex16 card slot, a differential signal hole-free design, and no signal attenuation and interference problems in parasitic capacitance and parasitic inductance. No driver installation is required, just plug and play.It can be easily paired with an external graphics card or PCIe device on the Sigma motherboard to maximize the performance of Sigma.

Overview of M.2 M Key to PCIe4.0x16 Extension Cable

We use metal-shielded wires and advanced EMI-shielding conductive polymers to ensure the stability of signal transmission. At the same time, we use new materials for EMI shielding to make the wire design flatter and can be bent and folded without affecting the use experience.

The Extension Cable uses metal-shielded wires and EMI-shielding conductive polymers

In addition, the adapter card also supports independent power supply and is equipped with a 15-pin SATA power cord, which eliminates the trouble of additional wiring and is more convenient to use.

Wiring Diagram of M.2 M Key to PCIe4.0x16 Extension Cable and LattePanda Sigma

Wiring Diagram of M.2 M Key to PCIe4.0x16 Extension Cable and LattePanda Sigma


Note:

1. Be sure to know the direction when plugging in the wire, and do not plug it in backwards or out of position to prevent burning the device. When plugging in, hold the socket of the device before plugging in the cord to avoid using too much force to disconnect the socket pins. Do not bend or pull within 2cm of the welding point between the two ends of the wire and the circuit board.

2. Depending on the signal drive capabilities of various motherboards and devices, the signal may be attenuated when an extension cable is connected.

Features

  • High-quality PCIex16 card slot
  • PCIe4.0x4, bandwidth up to 64G/bps
  • Using metal layer shielded wire, it can be bent and folded
  • Specification

  • Card slot: PCIex16
  • Specifications: PCIe 4.0x4
  • Transmission rate: 16GT/S
  • Bandwidth: 64G/bps(Max)
  • Rated power: 75W (Max)
  • Insulation resistance: 95MO-Km (Min)
  • Differential impedance: 100O
  • Line pair matching impedance: ±15O
  • Working temperature: -20°C ~80°C
  • Cord length: 20cm
  • Documents

    Parts List

  • M.2 M Key to PCIe4.0x16 Extension Cable x1
  • 15 pin SATA power cable x1
