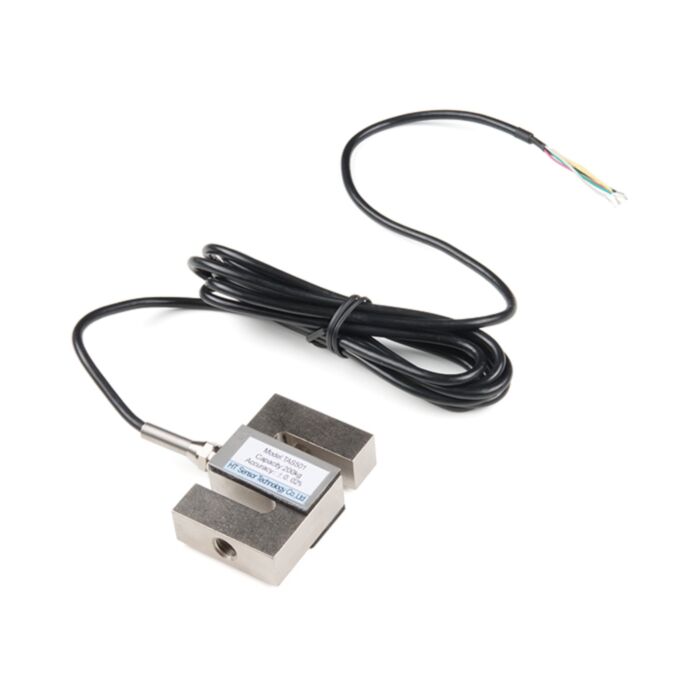

Load Cell - 200kg, S-Type (TAS501)

Rating:

100% of 100

SKU: SEN-14282 Brand: Sparkfun

This S-Type load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure...

$124.95 AUD, inc GST

$113.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

5+ $111.89 (exc GST)

This S-Type load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response and proportion to the strain (e.g., pressure or force) applied to the form. With this gauge you will be able to tell just how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each straight bar load cell is made from an alloy steel and is capable of reading a capacity up to 200kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation.

The colour code on the wiring is as follows:

Red (Excitation or VCC)
Black (Excitation- or GND)
White (Amplifier+, Signal+ or Output+)
Green (Amplifier-, Signal- or Output-)

Additionally, these load cells offer an IP66 protection rating and feature two M4 and two M5 sized through-holes for mounting purposes.

Get Started with the Load Cell Guide

Dimensions

51mm x 19mm x 76mm
3m Wire

Documents

This product is listed in:

Sensors>Force
