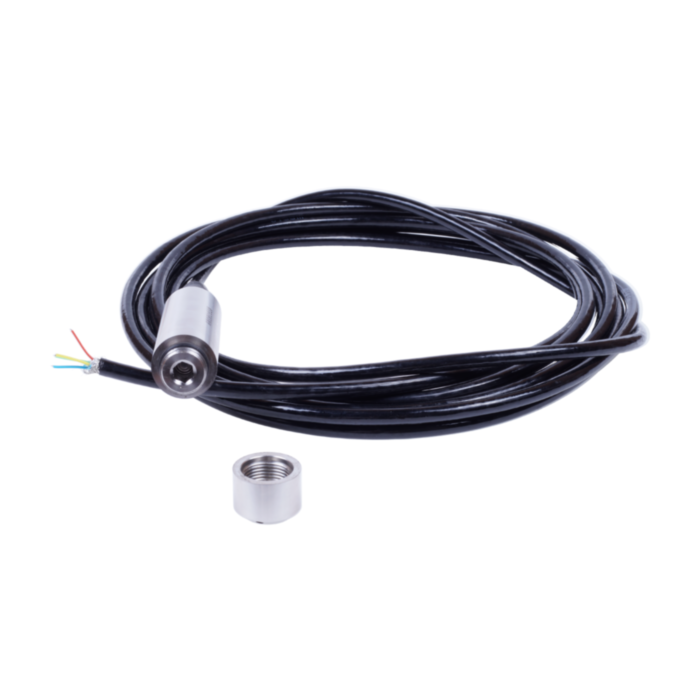

Liquid Level Sensor for Water Level, Oil Level and Mild-corrosive Liquid Level Monitoring

SKU: SS314990619 Brand: Seeed Studio
Industrial-grade liquid level sensor, featuring small-size, light-weight, and robustness, ensuring high sensitivity, high accuracy and high performance...
$244.95 AUD, inc GST
$222.68 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 01

Quantity Discounts:

  • 5-10 $213.77 (exc GST)
  • 10+ $207.09 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.


The Liquid Level Sensor measures the height of water or other liquid and converts it to the voltage signal. It works with a data logger or other devices that have analog voltage input ports.

The Liquid Level Sensor has a built-in silicon piezoresistive core that features high sensitivity. The internal chip converts the millivolt signal into a standard voltage signal, which can be connected to a computer, a control instrument, or a PLC.

It's small-size and lightweight, easy to install. With a sealed stainless steel probe, it can work in water, oil, and mild-corrosive environments. The sensor has high anti-vibration and anti-impact performance. It can be widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC, and other applications.



Features

  • High-performance: anti-interference and long-term stability
  • Robustness: anti-corrosion, durable and stable
  • User-friendly: anti-blocking design, easy to clean
  • Widely-applicable: 0.5~4.5V transmission output, can work with digital displays, PLC, inverters, recorders and other instruments
  • Industry-grade: IP68 rating, durable and waterproof, suitable for outdoor severe environments
  • Certifications: FCC, CE, and RoHS

Specifications

Measurement Range 0 ~ 5 meters
Cable Length 5.3 meters
Output Signal 0.5 ~ 4.5V
Accuracy ± 0.25%F.S
Zero Temperature Drift ± 0.03%F.S/°C
Sensitivity Temperature Drift ± 0.03%F.S/°C
Long-term Stability =0.2%F.S/year
Response Time 5ms( (=90%F.S)
Measurement Liquid  Slight corrosive liquid (water, edible oil, etc.)
Power Supply 5V DC
Overload Capacity 200%F.S
Compensation Temperature -10°C ~ +70°C
Medium Temperature  -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Material

304 stainless steel shell,

316L stainless steel core,

special rubber-insulated cable.

IP Rating IP68
Device Weight 670g
Certifications  CE, FCC, RoHS





Applications

  • Reservoir detection
  • Pool pump station
  • River monitoring
  • Marine monitoring
  • Lake monitoring
  • Sewage treatment
  • Deep well level monitoring
  • Tank level monitoring



Documentations

Industrial-grade Liquid Level Sensor Datasheet

Note

Please send email to [email protected] to request any technological support for this product.
