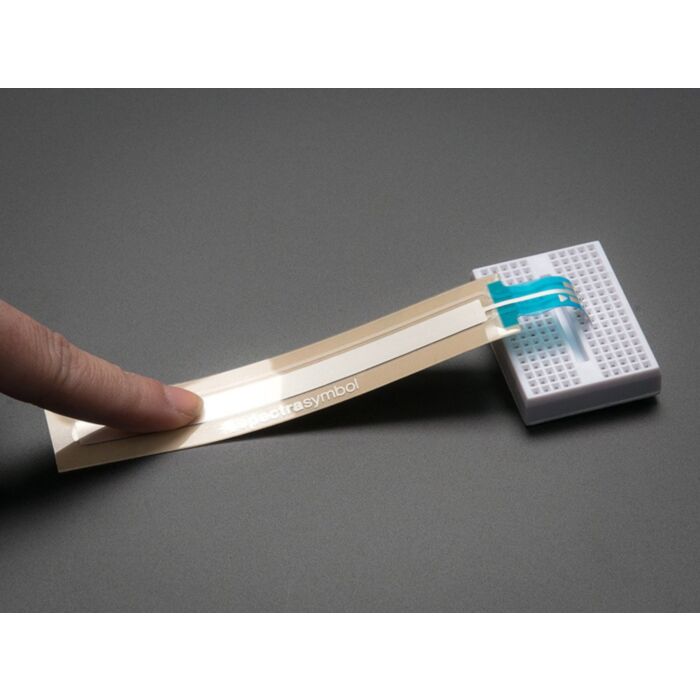

Linear SoftPot (Ribbon Sensor) - 100mm

SKU: ADA178

$13.50 AUD, inc GST
$12.27 AUD, exc GST

More Views

Linear SoftPot (Ribbon Sensor) - 100mm
13.5 AUD

SKU: ADA178

$13.50 AUD, inc GST
$12.27 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 84 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 31st of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Manufactured by Spectra Symbol, these are nice little ribbon controllers (also known as 'soft potentiometers') with an adhesive backing.

There is a nominal 10K resistance across the two outer leads. The middle pin resistance with respect to either of the outer pins changes depending on where on the strip one presses. When no pressure is applied, the middle pin floats, so be sure to use some sort of weak pullup, such as 100K ohm.

To use Connect one side pin to ground via a 10K resistor in series. Connect the other side pin to your Vcc power line (3V, 5V etc) via a different 10K resistor in series. Then read the analog voltage on the center pin. It will range from 1/3 Vcc to 2/3 Vcc . Do not connect to Ground and Power directly!

Datasheet, diagrams & schematics, and more information at the manufacturer's website!

Technical Details

Dimensions:

  • Length: 140.6mm/5.54in
  • Width: 20.50mm/0.81in
  • Thickness: 0.58mm/0.023in
  • Weight: 1.68g/0.06oz
Documentation and Resources:
