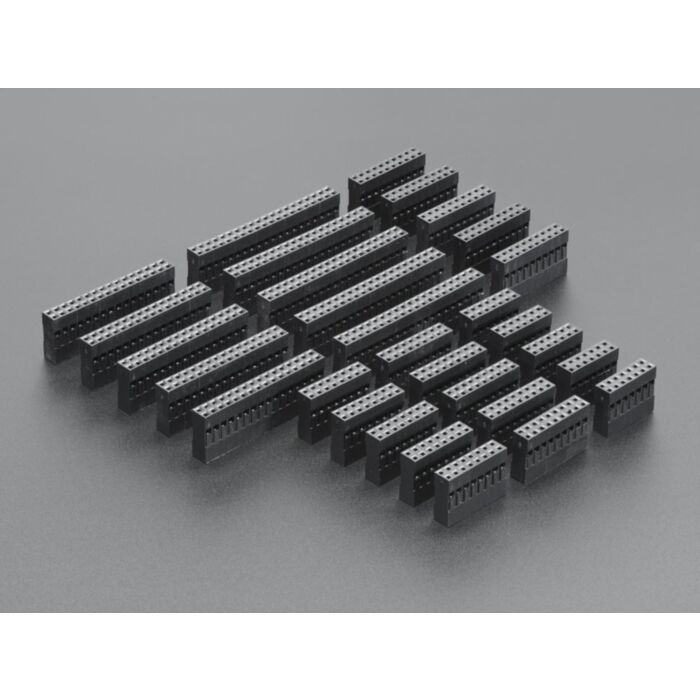

Large Dual Row Wire Housing Pack for DIY Jumper Cables

SKU: ADA3144 Brand: Adafruit

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

Are you frustrated by the lack of customization options for your jumper wires? Look no further!

Compatible with both male and female wires, these fully customizable wire housings bring DIY to a new level, giving you near limitless options when using jumper wires in your project.

This is a pack of large, dual row housings. They also offer other packs including single and dual row housings of varying sizes.

This pack includes:

  • 5 x 2x7 housing
  • 5 x 2x8 housing
  • 5 x 2x9 housing
  • 5 x 2x10 housing
  • 5 x 2x16 housing
  • 5 x 2x20 housing

Just snap in the raw jumper wires for ultimate DIY wire harnesses!

Technical Details

  • 2x7 Housing Dimensions: 14.1mm x 17.8mm x 5.2mm / 0.55" x 0.7" x 0.2"
  • 2x7 Housing Weight: 0.6g
  • 2x8 Housing Dimensions: 14.1mm x 20.4mm x 5.2mm / 0.55" x 0.8" x 0.2"
  • 2x8 Housing Weight: 0.7g
  • 2x9 Housing Dimensions: 14.1mm x 22.9mm x 5.2mm / 0.55" x 0.9" x 0.2"
  • 2x9 Housing Weight: 0.8g
  • 2x10 Housing Dimensions: 14.1mm x 25.5mm x 5.2mm / 0.55" x 1.0" x 0.2"
  • 2x10 Housing Weight: 0.9g
  • 2x16 Housing Dimensions: 14.1mm x 40.6mm x 5.2mm / 0.55" x 1.6" x 0.2"
  • 2x16 Housing Weight: 1.6g
  • 2x20 Housing Dimensions: 14.1mm x 50.6mm x 5.2mm / 0.55" x 2.0" x 0.2"
  • 2x20 Housing Weight: 1.9g
