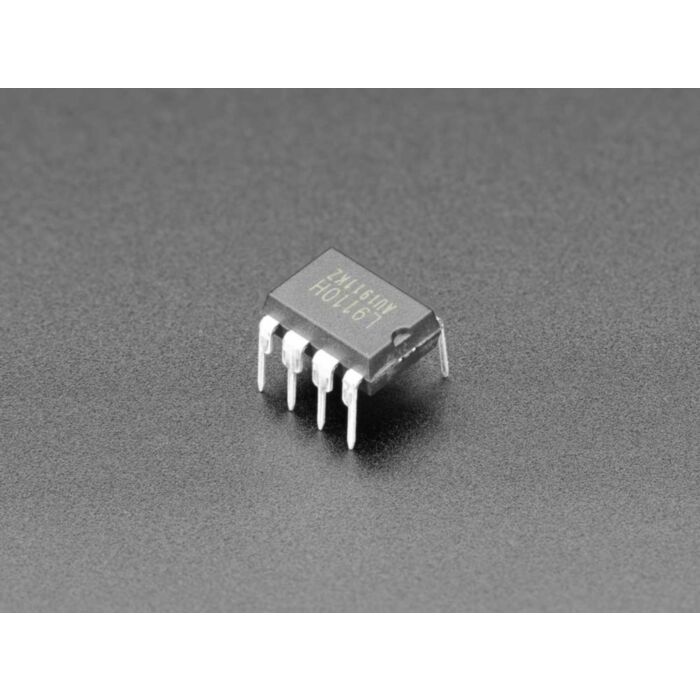

L9110H H-Bridge Motor Driver for DC Motors - 8 DIP - 2.5V-12V 800mAh

SKU: ADA4489 Brand: Adafruit
Run two solenoids, or a single DC motor with up to 800mA per channel using the super-simple L9110H H-bridge driver. This bridge chip is an 8 DIP package so it's...
$3.10 AUD, inc GST
$2.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $2.71 (exc GST)
  • 25+ $2.62 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Run two solenoids, or a single DC motor with up to 800mA per channel using the super-simple L9110H H-bridge driver. This bridge chip is an 8 DIP package so it's easy to fit onto any breadboard or perfboard.Each chip contains one full H-bridges (two half H-bridges). That means you can drive 2 solenoids or a single DC motors bi-directionally. Just make sure they're good for under 800 mA since that's the limit of this chip. They do handle a peak of 1.5A but that's just for a short amount of time. What Adafruit like most about this particular driver is that it comes with built in kick-back diodes internally so you don't have to worry about the inductive kick damaging your project or driver!

There's a PWM input per driver so you can control motor speed and direction. Good for motor power voltages from 2.5V up to 12V! This chip doesn't have split logic/power pins, but it seems that you can use 3.3V logic level with higher voltages no problem - Adafruit controlled a 9V motor setup with a Feather running at 3.3V.

Technical Details

Dimensions:

  • 9.3mm x 6.4mm x 3.2mm
  • Height with pins: 7mm
