KittenBot Meowbit - Codable Console for MakeCode Arcade

SKU: ADA4324 Brand: Adafruit

From the creative and cat-lovin' engineers at KittenBot comes the Meowbit - a handheld retro gaming computer for coding your own games with MakeCode Arcade and MicroPython...

$134.95 AUD, inc GST

$122.68 AUD, exc GST

Quantity Discounts:

5-10 $117.77 (exc GST)
10+ $114.09 (exc GST)

Out of Stock

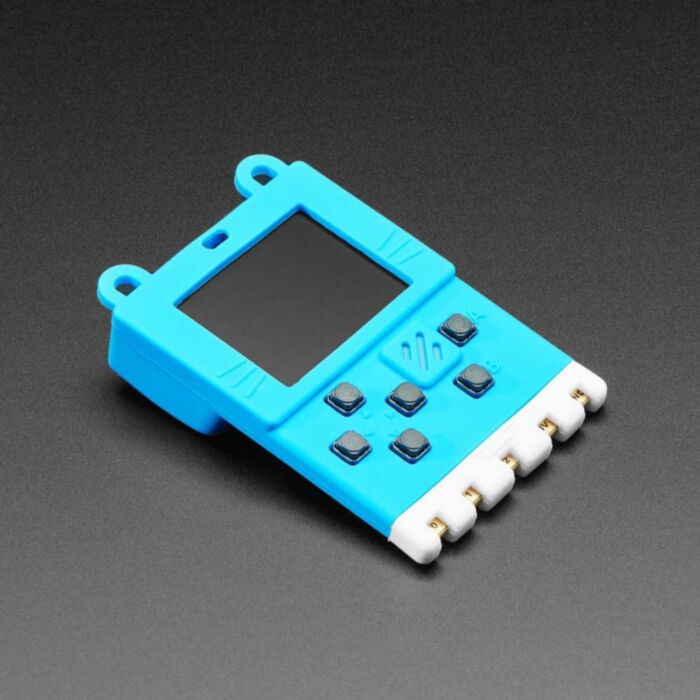

From the creative and cat-lovin' engineers at KittenBot comes the Meowbit - a handheld retro gaming computer for coding your own games with MakeCode Arcade and MicroPython. This design is really fun, with a GameBoy-like shape that can plug into micro:bit expansion boards. The built in display is a 160x128 color 1.8" TFT screen with the familiar ST7735 chipset over SPI. You also get 8 buttons (4-way D-Pad, A and B, menu and reset) to make games or interface with, and there's also a built-in speaker and SD card. For inputs there's a bunch of sensors including a light sensor, temperature sensor and even a 6-DoF gyro+accelerometer.

The micro:bit-familiar edge connector opens up access to many micro:bit expansion boards, but please note that the Meowbit isn't a micro:bit, it uses a different chipset (STM32) and does not have wireless or bluetooth. However, it is a great portable game platform for both Arcade and MicroPython (and you could probably get it working with Arduino or other C platforms, pretty easily!)

Check out these cool features:

STM32F401 Cortex M4 CPU with native USB support
USB program download port / charging port with USB drag-n-drop bootloader (UF2)
Li-Poly charging circuitry and charging indicator LED. Lipoly battery not included, please pick one up separately.
160 x 128 TFT color screen
4 x Direction buttons, A + B Buttons, menu/boot mode button, reset button
Light sensor
Temperature sensor
MPU6050 gyroscope
On-off power switch
2 x Programmable LEDs
Buzzer
SD card slot
Headphone "JACDAC" Multiplayer Connector (this is not a headphone audio port!)
2 MB SPI-flash (default download unicode character table)
Edge connectors compatible with micro:bit
Silicone cover

Note: Adafruit have Meowbit in blue and orange, but the selection is random per order. Adafruit can't change which one you get!

Technical Details

MCU: STMicro STM32F401RET6 Arm Cortex M4 micro-controller
Storage:

2MB SPI flash to store Unicode character table (default)
SD card slot to store programs or extend wireless modules

Display: 160 x 128 full-color TFT LCD
Sensors: Light sensor, temperature sensor, MP6050 gyroscope
Expansion: 40-pin BBC micro:bit “gold edge finger” connector
Charging/work LED, 2x user LED, power switch, reset button, DFU mode button, 4x direction buttons, A/B buttons, buzzer, multiplayer connector (15)
Power Supply: 5V via USB, or 3.7~4.2V via a Lithium battery pack; output current: 500mA (max); operating voltage: 3.3V
Adafruit recommend this Li-Po battery
Dimensions: 52 x 76 x 12 mm

Included Items

KittenBot Meowbit
Micro USB Cable (Charges a connected 3.7V Lipo)
