These adapter boards let you add connectors to your single-shaft micro metal gearmotors (not compatible with motors with extended back shaft). They are available with two connector orientation options—back-entry, which is parallel to the motor, and side-entry, which is perpendicular to the motor—and in different pack quantities.
JST SH-Style Connector Boards for Micro Metal Gearmotors (Back-Entry version on left, Side-Entry version on right). |
---|
The board mounts to the micro metal motor by soldering the motor terminals to the board slots. When mounted, the board fits entirely within the cross section of the motor.
|
|
The connectors are 2-pin male JST SH-style and work with commonly available 2-pin female JST SH-style cables (we will be adding some to Pololu's catalog soon). Connector pin 1 connects to the motor terminal slot marked 1.
Available options
Details for item #5096

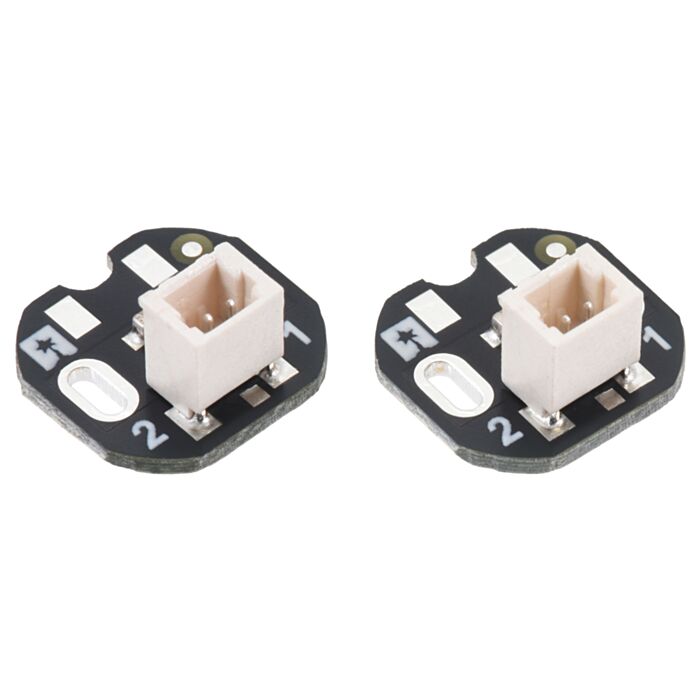

This product is a two-pack of back-entry connector boards:
JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (2-Pack). |
---|
Schematic diagram and dimensions
Detailed dimension diagrams are also available as a downloadable pdf (396k pdf).
Dimensions
Size: | 10.2 × 9.6 × 5.2 mm |
---|---|
Weight: | 0.2 g1 |
General specifications
Connector: | back-entry, 2-pin male, JST SH-type |
---|---|
Pack quantity: | 2 |
Identifying markings
PCB dev codes: | con02a |
---|---|
Other PCB markings: | 0J15310 |
Notes:
File downloads
Dimension diagrams of the JST SH-Style Connector Boards for Micro Metal Gearmotors (396k pdf)
3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (3MB step)
3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (3MB step)
3D models of Micro Metal Gearmotors (60MB zip)
This file contains 3D models (in the step file format) of the for the various versions of the Micro Metal Gearmotors.
Drill guide for the JST SH-Style Connector Boards for Micro Metal Gearmotors (44k dxf)
This DXF drawing shows the locations of all of the board’s holes.
