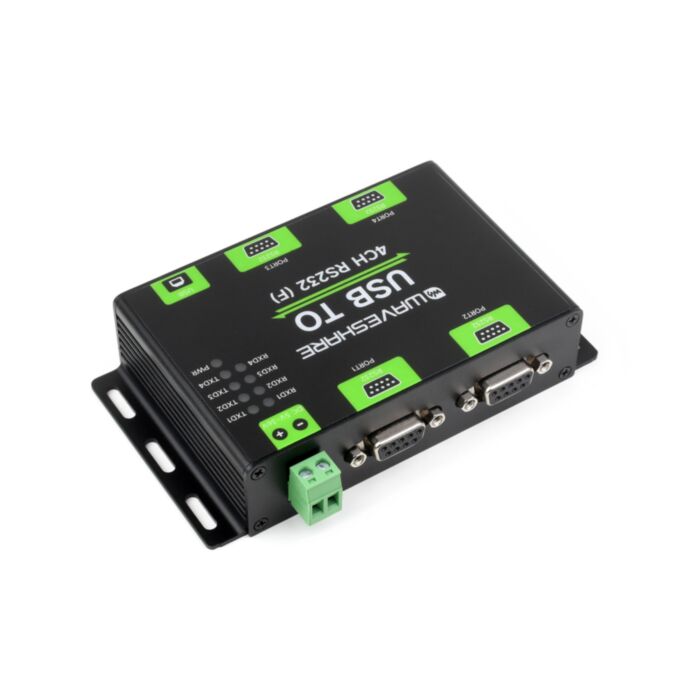

Industrial Isolated USB To 4-Ch RS232 Converter, USB To Serial Adapter, Original FT4232HL Chip, Mac / Linux / Android / Windows Multi-OS Compatible

SKU: WS-26854 Brand: Waveshare
Industrial Isolated USB To 4-Ch RS485 Converter (B), CH344L Chip, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount &...
$53.36 AUD, inc GST
$48.51 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 22 and Nov 01

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Industrial Isolated USB To 4-Ch RS232 Converter, USB To Serial Adapter, Original FT4232HL Chip, Mac / Linux / Android / Windows Multi-OS Compatible, Wall-Mount SupportIndustrial Isolated USB Converter

USB To 4-ch RS232 module, front viewFeatures At A Glance

  • Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
  • Supports USB to 4-ch isolated RS232, convenient for expanding multiple RS232 industrial serial devices
  • Onboard unibody power supply isolation, provides stable isolated voltage
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
  • Onboard power supply screw terminal, allows 5V~36V DC wide range input
  • 9 LEDs for indicating the power and transceiver status
  • Aluminum alloy enclosure with sand blasting and anodic oxidation, solid and durable



USB TO 4CH RS232 (F)

USB TO 4CH RS232 (F) to 4-ch RS232 female port

Original Industrial Grade Chip

Onboard original FT4232HL chip, Fast communication, stable & reliable, better compatibility

USB TO 4CH RS232 module, onboard original FT4232HL chip

Safer Isolated Design

  • Onboard unibody power supply isolation, provides stable isolated voltage
  • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

USB TO 4CH RS232 module, inside components

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance.

USB TO 4CH RS232 module with multiple protection

Multi-system support

Supports MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

USB TO 4CH RS232 module with multiple system support

Aluminum Alloy Enclosure

Aluminium alloy enclosure with sandblasting and anodic oxidation, Solid and durable

USB TO 4CH RS232 module adopts Aluminum Alloy case

Specifications

PRODUCT TYPE Industrial USB to RS232 isolated converter
Host port USB
Device port RS232
Baud rate 300bps ~ 921600bps
USB Operating voltage 5V
Connector USB-B
Protection 200mA self-recovery fuse, isolated output
Transmission distance about 5m
POWER SUPPLY INTERFACE Power supply 5~36V DC screw terminal
Protection Anti-reverse
isolated RS232 Connector DB9 male/female
Protection TVS diode, surge protection & ESD protection, power isolation and signal isolation
Transmission mode Point-to-point
Transmission distance about 15m
Indicators PWR Red power indicator, lights up when there is USB connection and voltage is detected
TXD1~4 Green TX indicator, blinking when the RS232 port is sending data
RXD1~4 Blue RX indicator, blinking when the RS232 port is receiving data
operating environment Temperature range -40? ~ 85?
Humidity range 5%RH~95%RH
Operating system MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Pin definition

USB TO 4CH RS232 pin definition

Outline dimensions:

USB TO 4CH RS232 outline dimensions



This product uses USB port for power supply by default, and power adapter is not included, you can purchase a 12V Power Supply if you need it.

What's included in the box?

  1. OPTIONS USB TO 4CH RS232 x1
  2. USB type-A to type-B cable ~1.2m x1
  3. Power adapter x1

USB TO 4CH RS232 package contains
