IDC Breakout Helper - 2x20 (40 pin)

Rating:

80% of 100

SKU: ADA2270 Brand: Adafruit

The "poor woman's" Raspberry Pi A+ / B+ / Pi 2 cobbler! This combo of 2x20 pin (0.1 spaced) header and socket is for Adafruit's popular GPIO Ribbon Cable for Raspberry...

$5.20 AUD, inc GST

$4.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $4.54 (exc GST)
25+ $4.40 (exc GST)

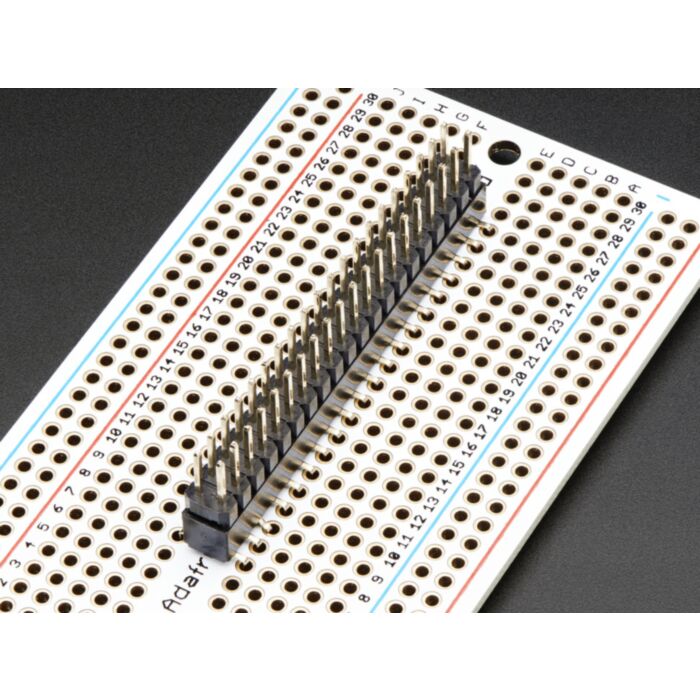

The "poor woman's" Raspberry Pi A+ / B+ / Pi 2 cobbler! This combo of 2x20 pin (0.1 spaced) header and socket is for Adafruit's popular GPIO Ribbon Cable for Raspberry Pi Model A+/B+/Pi 2 (40 pins). It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header plugs into the top of the socket. Since IDC cables are so standard, but a royal pain to use with breadboards, this is a good and cheap hack for prototyping

Works best when soldered in place. Adafruit have used these to prototype on a solderless breadboard but some customers report their breadboards don't play nice with the shorter pins so your mileage may vary.

Each order comes with one socket and one header. Breadboard, Perma Proto and IDC cable not included!

We also have helpers for:

Technical Details

Dimensions (assembled): 51mm x 8mm x 17mm / 2" x 0.3" x 0.7"
Dimensions (header): 51mm x 5mm x 12mm / 2" x 0.2" x 0.5"
Dimensions (socket): 51mm x 8mm x 8mm / 2" x 0.3" x 0.3"
Weight (assembled): 4.5g
