IDC Breakout Helper - 2x5 (10 pin)

SKU: ADA2102 Brand: Adafruit

This little 2x5 (10 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any of our 10-pin IDC cables. It comes in two parts, a 'pin-through' socket...

$1.90 AUD, inc GST

$1.73 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 12

Quantity Discounts:

10-25 $1.65 (exc GST)
25+ $1.61 (exc GST)

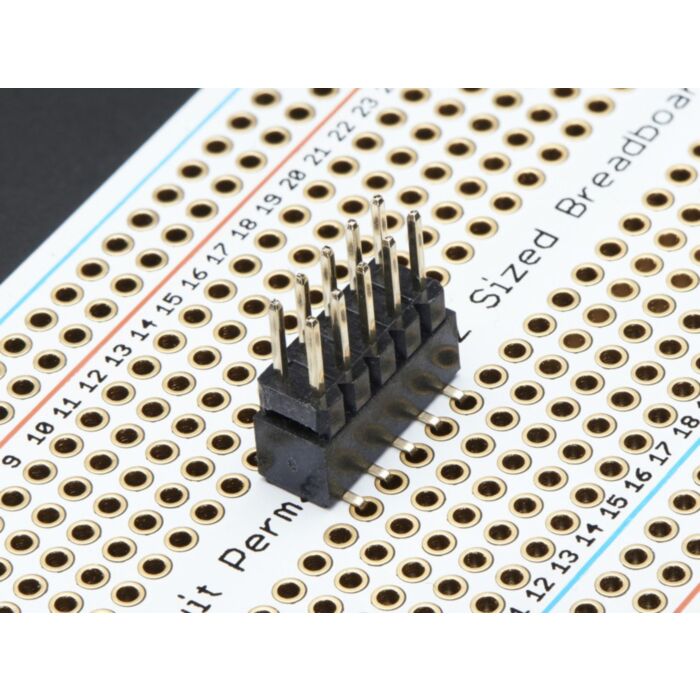

This little 2x5 (10 pin - 0.1 spaced) IDC Helper is great in conjunction with any of our 10-pin IDC cables. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a Perma-Proto and then header plugs into the top of the socket. Since IDC cables are so standard, but a royal pain to use with breadboards, this is a good and cheap hack for prototyping. Works best when soldered in place. Adafruit have used these to prototype on a solderless breadboard but some customers report their breadboards don't play nice with the shorter pins so your mileage may vary

Each order comes with one socket and one header. Breadboard, Perma Proto and IDC cable not included!

We also have helpers for:

Technical Details

Dimensions (assembled): 13mm x 8mm x 16.5mm / 0.5" x 0.3" x 0.65"
Dimensions (header): 12.5mm x 5mm x 12mm / 0.5" x 0.2" x 0.5"
Dimensions (socket): 13mm x 8mm x 8mm / 0.5" x 0.3" x 0.3"
Weight (assembled): 1g
