Home Assistant Green Smart Home Hub

Skip to the beginning of the images gallery

Home Assistant Green Smart Home Hub

SKU: DFR1189 Brand: DFRobot

Retired Product

Replaced by: TPH-105762

This product has been replaced by: TPH-105762
This product is no longer available. This page is only for reference.

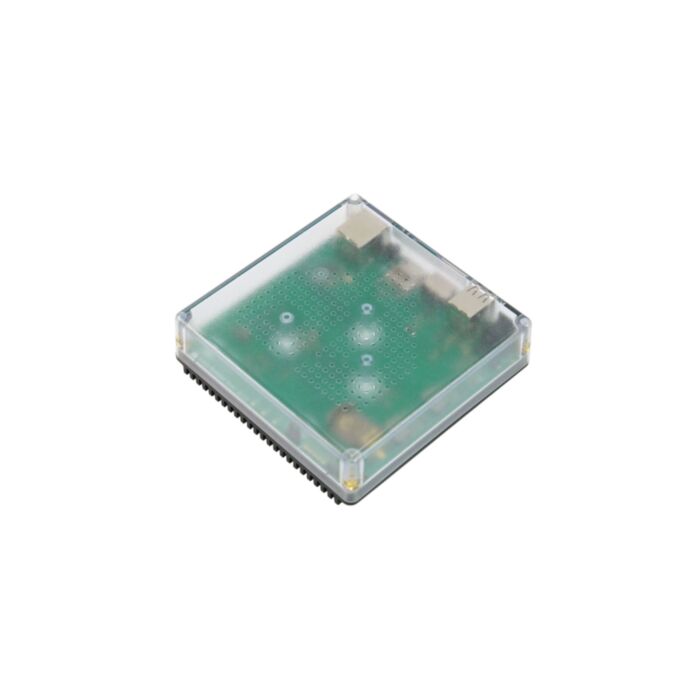

Home Assistant Green is a powerful and privacy-centric smart home hub designed to automate and control all your smart devices from a single platform. Compatible with Apple HomeKit, Google Home, Samsung SmartThings, and Amazon Alexa, this device integrates seamlessly into existing smart home ecosystems. With a robust 1.8 GHz Quad-core ARM processor, 4 GB RAM, and 32 GB eMMC storage, it offers high performance and future-proof scalability.

Figure: The perfect hardware for Home Assistant

Easy Setup and Use

Home Assistant Green is ready to use out of the box. Simply plug in the power and network cables, and the intuitive mobile apps will guide you through the setup process, allowing you to enjoy home automation without complexity.

Figure: Plug and Play

Seamless Smart Home Integration

Home Assistant Green supports a wide range of smart devices across different ecosystems, including Apple, Google, Samsung, and Amazon. It brings them all into one app, allowing easy control and automation of hundreds of thousands of devices.

Works with (almost) Everything

Figure: Works with (almost) Everything

Data Privacy and Local Storage

By default, all data is stored locally, ensuring that users retain full control over their data and enhancing privacy. There is no need to rely on cloud services, making this device the ideal choice for security-conscious users.

Specification

Processor: Quad-core ARM Cortex-A55 CPU with a maximum clock speed of 1.8GHz, designed for efficient performance.

Memory:

RAM: 4 GB of high-speed RAM for smooth multitasking and application handling.

Storage: 32 GB of eMMC flash storage for ample space to store applications and data.

Expansion: Dedicated SD card slot available for system recovery and updates.

Networking:

Ethernet: Gigabit Ethernet port for fast and reliable wired network connectivity.

USB Ports: Two USB 2.0 Type-A host ports for connecting peripherals and storage devices.

Display: A single HDMI port for debugging and display output.

Wireless Connectivity:

Protocols: Supports Zigbee 3.0 and Matter protocols, with Home Assistant SkyConnect for seamless integration.

Firmware: Pre-installed with Home Assistant OS for a ready-to-use smart home experience.

Power Supply: Operates on 12 V / 1 A power input through a barrel DC power jack, ensuring stable and consistent power delivery.

Indicator LEDs:

White: Power indicator.

Green: Activity indicator.

Yellow: Home Assistant system state indicator.

Power Control:

Safe Shutdown: Press and hold the power button for 6 seconds to initiate a safe system shutdown.

Forced Power Off: Press and hold the power button for 12 seconds to perform an emergency power off.

Enclosure: Features a large aluminum heatsink for efficient heat dissipation, ensuring long-term reliability and performance.

Dimensions: 111 mm x 111 mm x 33.6 mm, compact yet robust design for easy integration into various environments.

Operating Temperature Range: 0°C to 40°C, suitable for a wide range of indoor environments.

Documents

Datasheet

Quick Start Guide

Warranty and Safety Information
