Hobby Motor with Encoder - Plastic Gear (Pair, Red)

SKU: ROB-24053 Brand: Sparkfun
The motor requires a voltage between 4.5-9V, has a gearbox ratio of 1:48 and a speed of 140RPM at 4.5V...
$33.85 AUD, inc GST
$30.77 AUD, exc GST

Quantity Discounts:

  • 10-25 $29.85 (exc GST)
  • 25+ $29.24 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

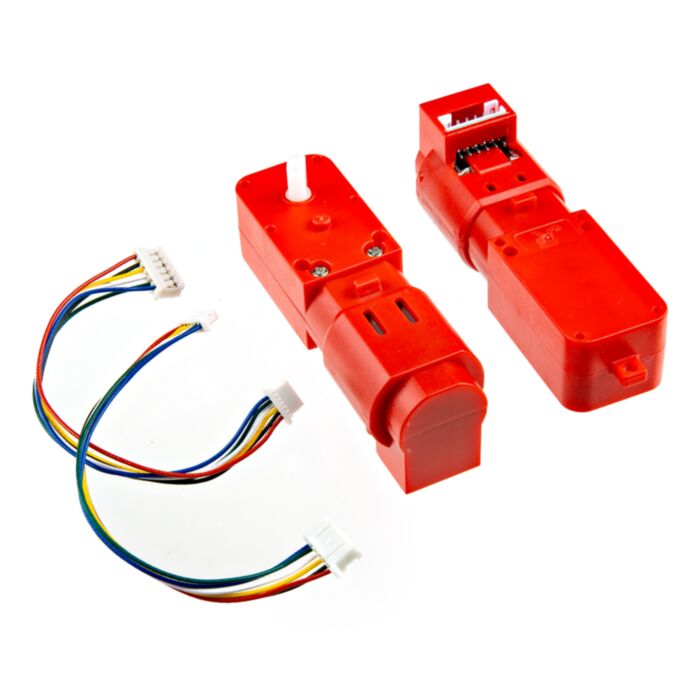

These are a pair of DG01D-E hobby motors with encoder with a hall speed encoder. The motor requires a voltage between 4.5-9V, has a gearbox ratio of 1:48 and a speed of 140RPM at 4.5V. The voltage between positive and negative is determined according to the power supply voltage of the single chip microcomputer used, generally 3.3V or 5V is used.

The hall sensor can sense the North and South poles of its magnetic plate. When the hall sensor senses the South of the magnetic plate, the hall output will result in a high level. Meanwhile the North is the inverse and, when sensed, the hall output will result a low level.

Note: These are the same motors used with the XRP kits Beta & DIY

Features

  • Dimension (single motor): 80x22.4x25.8mm
  • Voltage: 4.5~9V
  • Gear Ratio: 1:48
  • No Load RPM: 140RPM @4.5V
  • No Load Current: 0.15A
  • Stall Torque: 0.15N.M
  • Stall Current: 0.75A @6V
  • All at 6V - as tested in-house:
    • No load speed: 240RPM
    • No load current: 100mA
    • Stall torque: 1kg-cm
    • Stall current: 700mA
    • Encoder resolution: 585 counts per revolution
