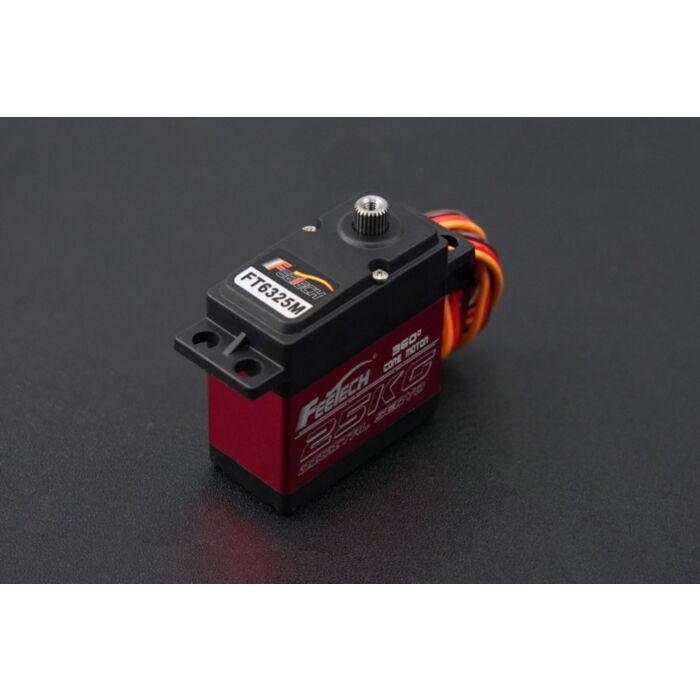

High Torque Waterproof Digital Servo with Magnetic Encoder (25KG, 360°, IP54)

Skip to the beginning of the images gallery

High Torque Waterproof Digital Servo with Magnetic Encoder (25KG, 360°, IP54)

SKU: SER0066 Brand: DFRobot

The waterproof digital servo with magnetic encoder features 12-bit high-precision magnetic encoder sensor that allows for precise and absolute control of...

Special Price $29.58 AUD, inc GST

Regular Price $38.04 AUD, inc GST

$26.89 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 27 and May 28

This is an exceptional high-torque, waterproof digital servo with a magnetic encoder, boasting a maximum torque of 25kg. It features a 12-bit high-precision magnetic encoder sensor that allows for precise and absolute control of the servo's position within a 360-degree range, ensuring unparalleled accuracy. With its improved linear motion capability, this servo provides unparalleled performance.

Internally, it utilizes a gear system made of reinforced steel gears with an optimized center distance of 2.0, ensuring durability and enhanced power transmission. The servo incorporates a dual ball bearing design for smoother operation and features an aluminum housing that enhances its heat dissipation capabilities, resulting in a longer lifespan.

High Precision Waterproof Digital Servo with Magnetic Encoder

Additionally, this servo is equipped with electronic and temperature protections, ensuring a safer user experience. In the event of a servo lock-up, it automatically triggers a protective torque output when the torque exceeds the overload capacity for a continuous period of 4 seconds. Moreover, should the servo's temperature surpass 70 degrees, it ceases torque output, only to resume once the temperature drops below 70 degrees.

Quality Material of High Precision Waterproof Digital Servo with Magnetic Encoder

To enhance its water resistance, the servo's joints are fortified with waterproof gaskets, and the circuit board is coated with a waterproof varnish. Both the motor and the potentiometer are sealed with a specialized adhesive. These measures contribute to the servo's exceptional waterproof capabilities. Moreover, this servo is accompanied by a selection of different-shaped servo horns, enabling its application in a wider range of environments.

Waterproof Design of Metal Waterproof Servo

Interface Definition Diagram of Metal Waterproof Servo

Interface Definition Diagram

Dimensional Diagram of Metal Waterproof Servo

Dimensional Diagram

Applications

Build robots

Driving part of various automated equipment

Specification

Electrical characteristics

Operating Voltage: 5-8.4V

No-Load Speed: 0.185sec/60°(54RPM)@6V,0.151sec/60°(66RPM)@7.4V

Operating Current: 100mA@6V,[email protected]

Stall Torque: 20.5kg.cm/285.19oz.in@6V,25kg.cm/[email protected]

Stall Current: 3A@6V,[email protected]

Static Current: 6mA

Rated Load: 7kg.cm@6V,[email protected]

Rated Current: 1000mA@6V,[email protected]

Kt Constant: 7kg.cm/A

Control characteristics

Control Signal: PWM

Angle: 360° (at 500→2500µsec)

Angle Difference: =1°

Return Difference: =1°

Neutral Position: 1500µsec

Dead Band Width: =4µsec

Rotation Direction: Counterclockwise (from 1500 → 2000µsec)

Pulse Width Range: 500→2500µsec

Signal High Voltage: 2-5V

Signal Low Voltage: 0-0.45V

Signal Period: 20ms

Mechanical Specifications

Casing Material: PA+Aluminum

Gear Material: Steel

Bearing Type: Ball Bearing

Output Shaft: 25T/5.9mm

Reduction Ratio: 1/275

Gear Backlash: =0.5°

Arm Backlash: 0°

Output Shaft Screw: M3X6

Mechanical Specifications

Motor Noise: 45±5dB

Servo No-Load Noise: 65±5dB

Waterproof Rating: IP54 (splash-proof)

Electronic Protection: 4 seconds lock-up

Temperature Protection: >70°C

Storage Temperature: -30°C~80°C

Operating Temperature: -20°C~60°C

Parts List

Metal Magnetic Encoder Servo-25KG 360° x1

Metal Servo Arm x1

Servo Horn Accessories Pack x1
