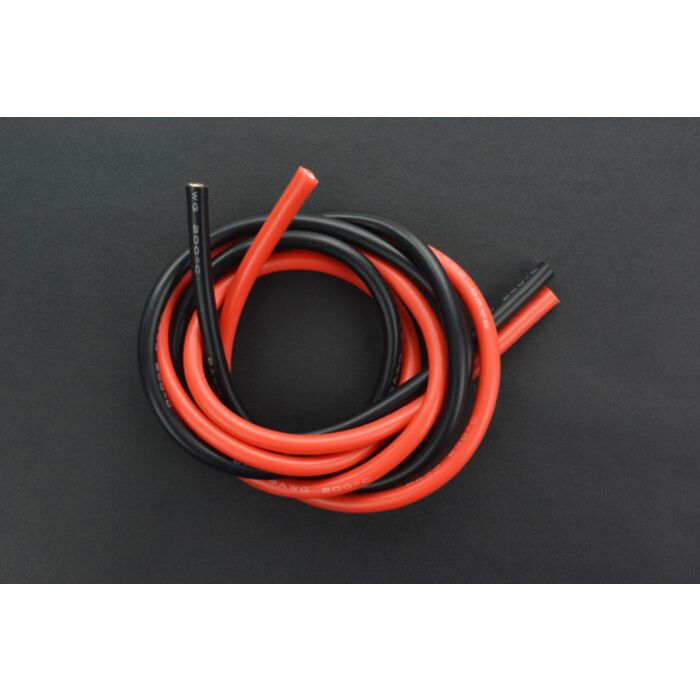

High Temperature Resistant Silica Gel Silicone Wire (8AWG 10mm2 1m Red & Black)

SKU: FIT0580 Brand: DFRobot

This product is high temperature resistant silicone wire with 8AWG and 10mm2. It is made of fine tin-plated copper material and not easily oxidized. It adopts the...

$16.90 AUD, inc GST

$15.36 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $14.90 (exc GST)
25+ $14.60 (exc GST)

Please note this product is pre-cut to 1M increments and is not sold in longer lengths. Ordering Multiple's will be shipped as individual 1M Lengths

This product is a high-temperature resistant silicone wire with 8AWG and 10mm2. It is made of fine tin-plated copper material and not easily oxidized. It adopts the process of mutual twisting, which reduces the signal interference and improves the conductive property. The allowable load voltage is AC600V/DC3KV and the load current reaches 190A. The insulating layer is a silica gel material with excellent performance. The insulating layer is thin but not easy to be broke down. It has elasticity, toughness and acid and alkali resistance. Normally, it can be used at temperatures from -60 ° C to +200 ° C, can be used for robots, ESC, motors, robot arms, aeromodelling, car models, and ship models which require high wire performance.

NOTE:

The power supply should not exceed the rated voltage to avoid affecting the wire life.
It should be avoided using over the temperature range of -60 ° C ~ +200 ° C

Features

High temperature resistant, low temperature resistant, not easy to break down, high voltage and high current resistant

Specifications

Rated voltage: AC600V/DC3KV
Allowable current: 190A
Temperature range: -60 ° C ~ +200 ° C
Model: 8AWG 10 mm2
Inner core material: 0.08mm (diameter) tinned copper wire
Insulation material: silica gel

Contains

1x High-Temperature Resistant Silicone Wire (8AWG 10mm2 Red 1m)
1x High-Temperature Resistant Silicone Wire (8AWG 10mm2 Black 1m)
