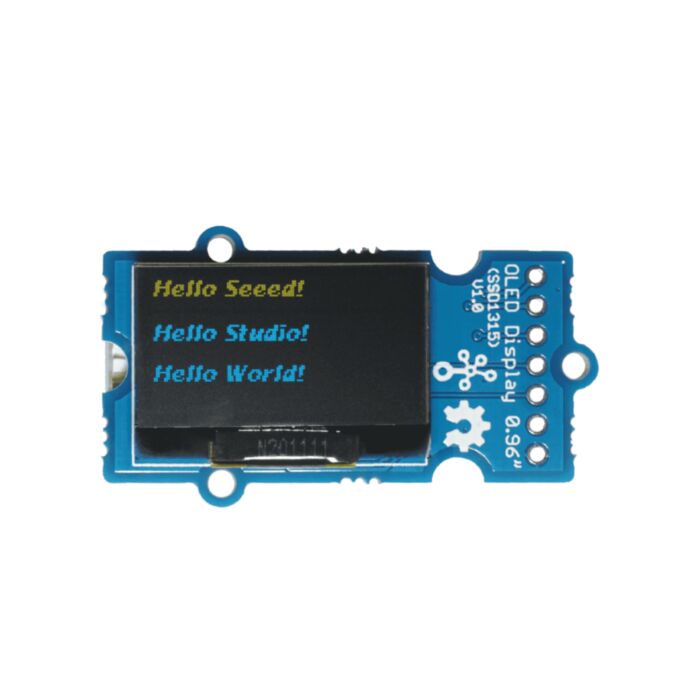

Grove - OLED Yellow&Blue Display 0.96 (SSD1315) - SPI/IIC -3.3V/5V

SKU: SS104020249 Brand: Seeed Studio

The Grove - OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128*64 resolution. It has a user-friendly design and...

$11.50 AUD, inc GST

$10.45 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 10

Quantity Discounts:

10+ $10.04 (exc GST)
25+ $9.73 (exc GST)

We had Grove - OLED Display 0.96" (SSD1315), a monochrome(white) 128×64 pixels passive display matrix module with Grove I2C Interface, and now we have the Grove - OLED Yellow&Blue Display 0.96 (SSD1315), a blue and yellow bi-colour display with 128*64 resolution.

Key Features

3.3V/5V power supply compatible
Changeable I2C address
SPI available
Low power consumption
Yellow and Blue two-colour 128×64 pixels
High contrast, high brightness
Wide operating temperature range: -40ºC ~ +85ºC
Grove connector is hidden on the back

The Grove - OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128*64 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

Thanks to suggestions from @Scott Bridges and @Paul Rodgers, we put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.

Specification

Parameter

Input voltage3.3V / 5V

Output Voltage0 ~ 2.3V

Pixels128 x 64

Temperature Range-40ºC ~ +85ºC

InterfaceI2C/SPI
