Great Scott Gadgets HackRF One - Software Defined Radio

SKU: ADA3583

Retired Product

Replaced by: WRL-13001

This product has been replaced by: WRL-13001
This product is no longer available. This page is only for reference.

HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

Great for listening on RF emitters and transmitting on ISM bands (check your country's ISM frequencies before transmitting). It's even better if you are HAM licensed with an ultra-wide range of transmitting frequencies (basically, all of them)!

Capabilities:

1 MHz to 6 GHz operating frequency
Half-duplex transceiver
Up to 20 million samples per second
8-bit quadrature samples (8-bit I and 8-bit Q)
Compatible with GNU Radio, SDR#, and more
Software-configurable RX and TX gain and baseband filter
Software-controlled antenna port power (50 mA at 3.3 V)
SMA female antenna connector
SMA female clock input and output for synchronization
Convenient buttons for programming
Internal pin headers for expansion
Hi-Speed USB 2.0
USB-powered
Open source hardware

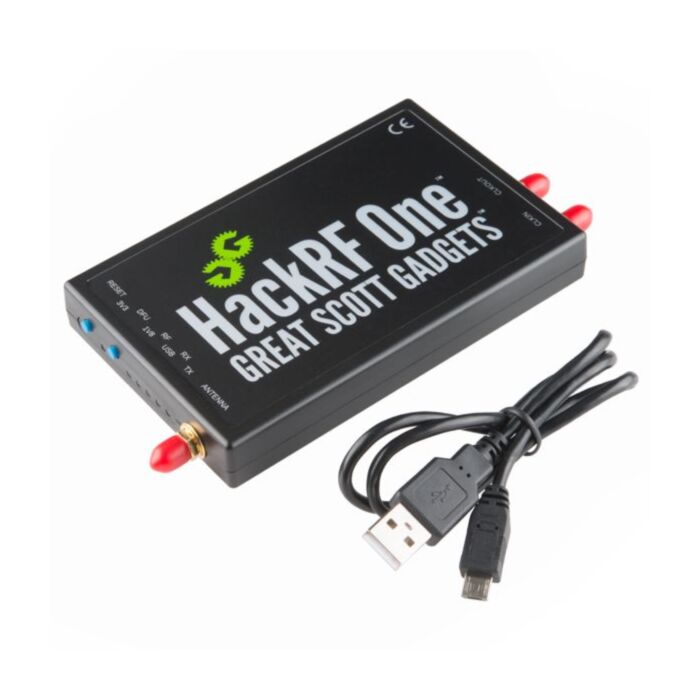

HackRF One has an injection molded plastic enclosure and ships with a micro USB cable. An antenna is not included. ANT500 is recommended as a starter antenna for HackRF One.

HackRF One is test equipment for RF systems. It has not been tested for compliance with regulations governing the transmission of radio signals. You are responsible for using your HackRF One legally.

Technical Details

Receiver Weight: 100g / 0.22lbs
Receiver Dimensions: 124mm x 80mm x 18mm / 4.88" x 3.15" x 0.7"
Cable Length: ~22.5"

Documentation can be found in the wiki.

Source code and hardware design files are available in the latest release or in the git repository.

Before asking for help with HackRF, check to see if your question is listed in the FAQ or has already been answered in the mailing list archives.

For assistance with HackRF general use or development, please subscribe to the HackRF-dev mailing list. This is the preferred place to ask questions so that others may locate the answer to your question in the list archives in the future. Additionally, you may want to join us in the #hackrf IRC channel on freenode.
