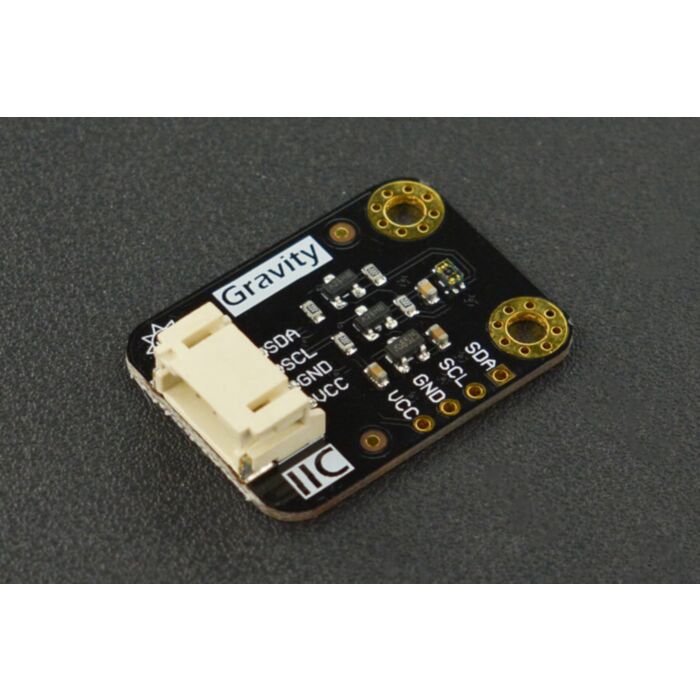

Gravity VEML6075 UV Sensor Module

SKU: SEN0303 Brand: DFRobot
This is a UV sensor module based on Vishay VEML6075 sensor, adopting individual UVA and UVB channel solution with 16-bit resolution. It can convert solar UV light...
$11.95 AUD, inc GST
$10.86 AUD, exc GST

Quantity Discounts:

  • 10-25 $10.54 (exc GST)
  • 25+ $10.32 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a UV sensor module based on Vishay VEML6075 sensor, adopting individual UVA and UVB channel solution with 16-bit resolution. It can convert solar UV light intensity to digital data to provide an accurate measure of the signal strength.
VEML6075 UV sensor can give a reliable performance of UV radiation measurement under long-time solar UV exposure. Furthermore, the sensor provides excellent temperature compensation capability within -40°C to +85°C. VEML6075 features, low power consumption, and its minimum power can be as low as 800nA in shut-down mode. The operating voltage of the sensor ranges from 3.3V to 5V.
Compatible with Arduino and Raspberry Pi, this sensor can be used in portable electronic products, wearable devices, weather stations, flame detection, and so on. We have related Arduino and Python libraries for the product.

Specifications

  • Operating Voltage: 3.3V~5V
  • Chip: VEML6075
  • Output Type: I2C
  • Response Wavelength: UVB (λ0.5) within 315nm to 340nm; UVA (λ0.5) within 350nm to 375nm.
  • Interface: PH2.0-4P
  • IIC Address: 0x10
  • Product Size: 22×30mm/0.87×1.18”
  • Mount Hole Size: 3mm
  • Mount Hole Pitch: 15mm
  • Operating Temperature: -40°C ~ +85°C

Documents

Shipping List

  • Gravity VEML6075 UV Sensor Module x1
  • PH2.0-4P Connector (30cm, red, black, blue, green) x1
  • 2.54 Black Single Row Pin Header-4P x1
