Gravity: Easy Relay Module

SKU: DFR0643 Brand: DFRobot

The traditional relay module has complicated wiring and is not friendly to beginners or students. The simple switch module simplifies the wiring method for connecting...

$14.25 AUD, inc GST

$12.95 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 07 and Feb 11

Quantity Discounts:

10-25 $12.56 (exc GST)
25+ $12.31 (exc GST)

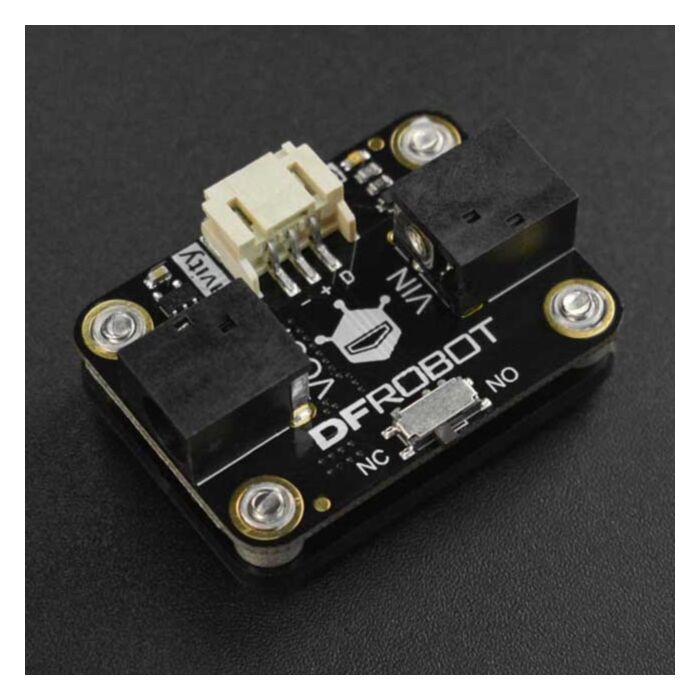

The traditional relay module has complicated wiring and is not friendly to beginners or students. The simple switch module simplifies the wiring method for connecting traditional relays. The input end is equipped with an adapter, which can be compatible with most power sources, battery boxes, DC power supplies, power bank, etc. While simplifying the wiring mode, the functions of relays NC and NO are retained, and the normally open and normally closed modes can be switched by simply adjusting the toggle switch.

DFRobot's latest easy relay module uses a standard Gravity sensor interface and supports a wide voltage input of 3.3V-5.5V, making it easy to connect with main control boards such as Arduino, control board, and so on. Meet your needs in control applications such as robot control, light control, smart home, security, etc.

Features

3.3 ~ 5.0V working voltage, wide voltage input, compatible with 3.3V control board, and 5V main control board.
Toggle switch to switch NC / NO mode easily, LED indicator shows output status.
DC2.1 input and output interface, with the included adapter, plug and play, suitable for most application scenarios.

Specifications

VIN operating voltage: 5V-30V
VIN operating current: 0A-2.5A
Logic power supply: 3.3 ~ 5.5V
Logic signal: 3.3 ~ 5.5V
Operating temperature: -55°C - 150°C
Switching characteristics: T (on) = 20us / T (off) = 50us
Switching frequency: 1kHz
Dimension: 37 * 27mm / 1.46 * 1.06in

Check out the product wiki here
