Gravity: Analog Electrical Conductivity Sensor / Meter(K=10)

SKU: DFR0300-H Brand: DFRobot

DFRobot Gravity: analog electrical conductivity sensor/meter(K=10) is particularly used to measure the high electrical conductivity liquid, such as seawater, concentrated...

$139.95 AUD, inc GST

$127.23 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 20

Quantity Discounts:

5-10 $123.41 (exc GST)
10+ $120.86 (exc GST)

DFRobot Gravity: analog electrical conductivity sensor/meter(K=10) is particularly used to measure the high electrical conductivity liquid, such as seawater, concentrated brine, etc. The measurement range is up to 100ms/cm. This product is suitable for the water quality application of mariculture, for example, marine fisheries, marine aquariums. You may also check Liquid Sensor Selection Guide to get better familiar with our liquid sensor series.

It supports 3~5v wide voltage input and is compatible with 5V and 3.3V main control boards, such as Arduino and Raspberry Pi. The excitation source adopts an AC signal, which effectively reduces the polarization effect, improves the precision, and prolongs the life of the probe; The software library uses a single-point calibration method, and can automatically identify a standard buffer solution, so simple and convenient.

With this product, main control board (such as Arduino), and the software library, you can quickly build an electrical conductivity meter, plug, and play, no soldering required, which provides a set of plug-and-play conductivity measurement solutions for makers.

DFRobot provides a variety of water quality sensor products, uniform size, and interface, not only meet the needs of various water quality testing but also suitable for the DIY of multi-parameter water quality tester.

Tips:
This product does not contain a temperature sensor. In order to ensure the measurement accuracy, it is strongly recommended to add a temperature sensor to measure the temperature and achieve automatic temperature compensation. DS18B20 waterproof temperature sensor can be used.

Gravity: Analog Electrical Conductivity Sensor / Meter(K=10) Arduino Connection Diagram

Arduino Connection Diagram

Attention:
1.The probe is a laboratory-grade probe. Do not immerse in liquid for a long time. Otherwise, this will shorten the life of the probe.
2.Platinum black layer is attached to the surface of the sheet metal in the probe. It should avoid any object touching it. It can only be washed with distilled water, otherwise, the platinum black layer will be damaged, resulting in an inaccurate measurement.

Features

3.0~5.0V wide voltage input,0~3.2V output voltage, which is compatible with 5V and 3.3V mainboard
AC excitation source, effectively reduce polarization
Gravity connector and BNC connector, plug and play, no welding
Software library supports single-point calibration, and automatically identifies standard buffer solution, integrates temperature compensation algorithm
Uniform size and connector , convenient for the design of mechanical structures

Specification

Signal Conversion Board

Supply Voltage: 3.0~5.0V
Output Voltage: 0~3.2V
Probe Connector: BNC
Signal Connector: PH2.0-3Pin
Measurement Accuracy: ±5% F.S.
Board size: 42mm*32mm/1.65in*1.26in

Electrical Conductivity Probe

Probe Type: Laboratory Grade
Cell Constant: 10±2
Support Detection Range: 10~100ms/cm
Temperature Range: 0~40°C
Probe Life: >0.5 years (Actual life is related to the frequency of use and scene)
Cable Length: 100±2cm

Documents

Product wiki

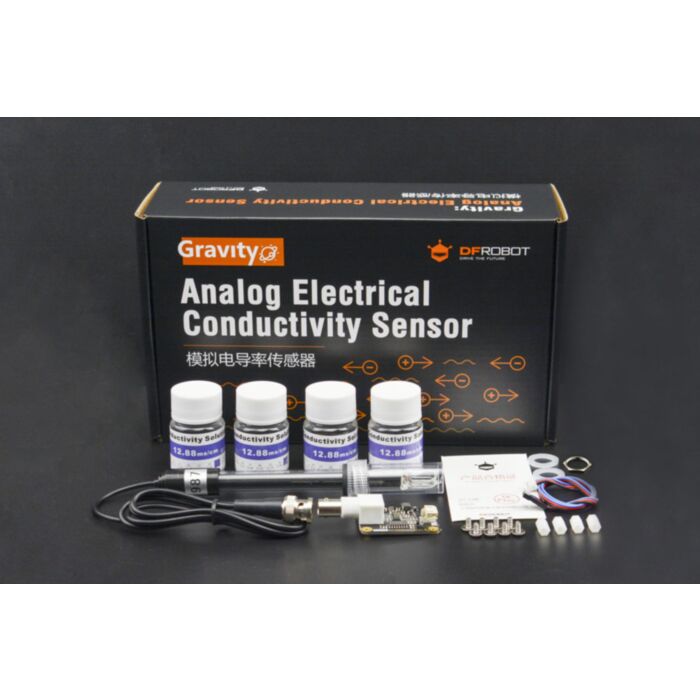

Parts List

Electrical Conductivity Probe(K=10, Laboratory Grade) x1
Signal Conversion Board x1
Standard Buffer Solution 12.88ms/cm x4
Gravity Analog Sensor Cable x1
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screws x8
