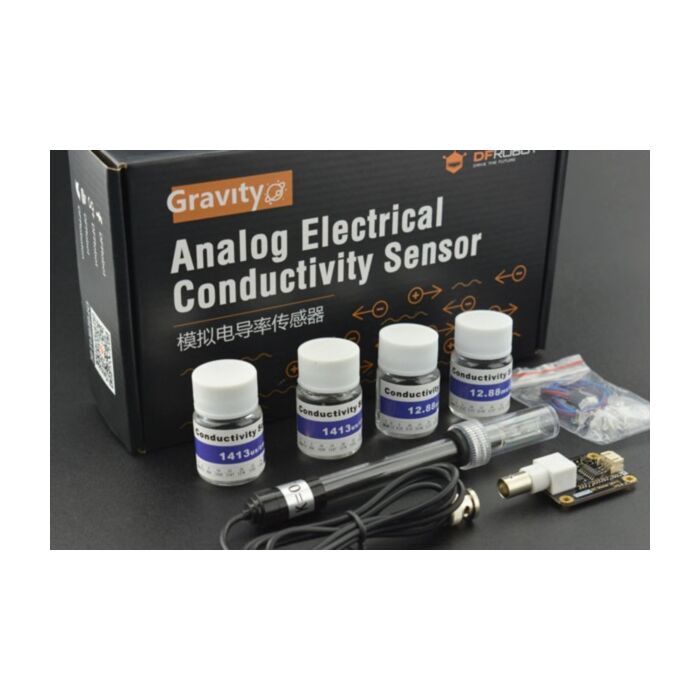

Gravity: Analog Electrical Conductivity Sensor /Meter V2 (K=1)

SKU: DFR0300 Brand: DFRobot

$124.95 AUD, inc GST

$113.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

5-10 $109.05 (exc GST)
10+ $105.64 (exc GST)

INTRODUCTION

DFRobot Gravity: analog electrical conductivity meter V2 is specially used to measure the electrical conductivity of aqueous solution, and then to evaluate the water quality, which is often used in water culture, aquaculture, environmental water detectionand other fields. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

This product, as an upgraded version of electrical conductivity meter V1, greatly improves the user experience and data precision. It supports 3~5v wide voltage input, and is compatible with 5V and 3.3V main control board; The output signal filtered by hardware has low jitters; The excitation source adopts AC signal, which effectively reduces the polarization effect, improves the precision and prolongs the life of the probe; The software library uses two-point calibration method, and can automatically identify standard buffer solution, so simple and convenient.

With this product, main control board (such as Arduino) and the software library, you can quickly build an electrical conductivity meter, plug and play, no welding. DFRobot provides a variety of water quality sensor products, uniform size and interface, not only meet the needs of various water quality testing, but also suitable for the DIY of multi-parameter water quality tester.

Conductivity is the reciprocal of the resistance, which is related to the ability of the material to carry the current. In the liquid, the reciprocal of the resistance, the conductivity, is the measure of its ability to conduct electricity. Conductivity is an important parameter of water quality. It can reflect the extent of electrolytes present in water.

Tips:
In order to ensure the measurement accuracy, it is strongly recommended to add a temperature sensor to measure the temperature, and achieve automatic temperature compensation. DS18B20 waterproof temperature sensor can also be used.

Arduino Connection Diagram

Attention:
1.The probe is a laboratory-grade probe. Do not immerse in liquid for a long time. Otherwise this will shorten the life of the probe.
2.Platinum black layer is attached to the surface of the sheet metal in the probe.It should avoid any object touching it. It can only be washed with distilled water, otherwise the platinum black layer will be damaged, resulting in inaccurate measurement.

FEATURES

3.0~5.0V wide voltage input
Hardware filtered output signal, low jitter
AC excitation source, effectively reduce polarization
Gravity connector and BNC connector, plug and play, no welding
Software library supports two-point calibration, and automatically identifies standard buffer solution, integrates temperature compensation algorithm
Uniform size and connector, convenient for the design of mechanical structures

APPLICATIONS

Water quality monitoring.
Aquaculture.
Hydroponic & Aquaponic.

SPECIFICATION

Signal Conversion Board (Transmitter) V2

Supply Voltage: 3.0~5.0V
Output Voltage: 0~3.4V
Probe Connector: BNC
Signal Connector: PH2.0-3Pin
Measurement Accuracy: ±5% F.S.
Board size: 42mm*32mm/1.65in*1.26in

Electrical Conductivity Probe

Probe Type: Laboratory Grade
Cell Constant: 1.0
Support Detection Range: 0~20ms/cm
Recommended Detection Range: 1~15ms/cm
Temperature Range: 0~40°C
Probe Life: >0.5 year (depending on frequency of use)
Cable Length: 100cm

DOCUMENTS

SHIPPING LIST

Electrical Conductivity Probe(K=1,Laboratory Grade) x1
Signal Conversion Board (Transmitter) V2 x1
Standard Buffer Solution 1413us/cm x2
Standard Buffer Solution 12.88ms/cm x2
Gravity Analog Sensor Cable x1
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screw x8
