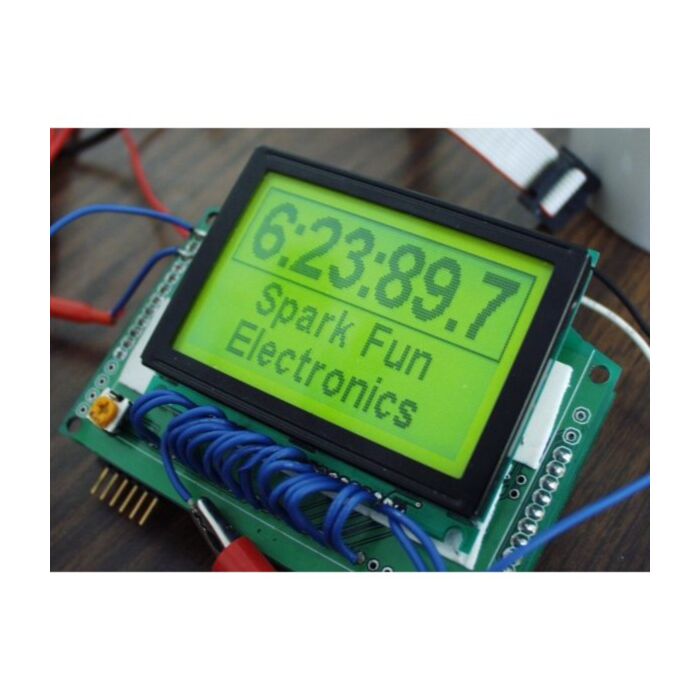

Graphic LCD 128x64 STN LED Backlight

SKU: LCD-00710

$29.60 AUD, inc GST
$26.91 AUD, exc GST

More Views

Graphic LCD 128x64 STN LED Backlight
29.6 AUD

SKU: LCD-00710

$29.60 AUD, inc GST
$26.91 AUD, exc GST
1 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a framed graphical LCD 64x128 with LED backlight. This unit is a very clear STN type LCD with a simple command interface. This new module includes the negative voltage circuitry on board!

Utilizes the extremely common KS0108B parallel interface chipset (datasheet). Interface code is freely available. Includes LED Backlight.

Dimensions:

  • Overall: 75x52.7mm
  • Viewable area: 55.01x27.49mm

Documents:

This product is listed in:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Gregory verified purchaser
    Rating
    100

    Great screen. I'm using on of these as the console for a motorcycle trip computer and this screen is very readable in direct sunlight. Since it uses a parallel interface its very fast but obviously needs a lot of connections. You need to add a trimpot to adjust the contrast. You need to be careful as it appears that there are a few different versions of this screen around with different connections. Use the datasheet linked from the product page to wire up the contrast circuit. DON'T follow the tutorial on the Arduino site as you will likely fry the backlight circuit. (Posted on 5/07/2018)
